Noyito
NOYITO E3F-DS30P2 Proximity Switch Photoelectric Sensor Switch 30 cm Adjustable Detection Distance Diffuse Reflection Infrared Switch DC 6-36V 3-Wire PNP NC
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- NOYITO E3F series photoelectric switches are displacement sensors with switching output. It can detect the displacement of various non-totally transparent and opaque objects.
- This series of switches is a position switch that can be operated without direct contact with a moving object. When an object approaches the sensing surface of the switch to the actuation distance, the switch can be activated without contact and without applying any pressure to drive a direct electric appliance or to provide control instructions to a PLC device. It can be used in automatic control system as limit, counting, positioning control and automatic protection.

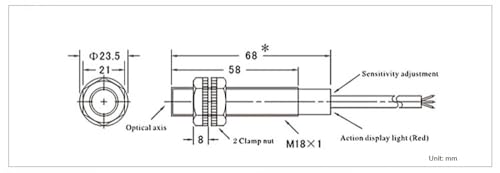

- Please check the third picture for product size specifications.
- Wire description: brown - power positive; blue - power negative; black - signal output. Wire length 1.2 meters / about 3.9 feet
- Sensing distance: 7-30cm （Adjustable）, Working voltage: DC 6-36V.
$19,68
44% OFF
$10,94
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$19,68
44% OFF
$10,94
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Product Model: E3F-DS30P2 Triode form: PNP Action state: NC Working voltage: DC 6-36V. Reflection form: diffuse reflection type. Wire description: brown - power positive; blue - power negative; black - signal output. Sensing distance: 7-30cm （Adjustable） Standard detection object: 2mm or more non-transparent objects. Diffusion angle: cast light angle 3-5 degrees. Static current: ≤20mA-35mA. Connection: wire lead, wire length 1.2 meters / about 3.9 feet. Maximum output current: 300mA. LED indicator status: red light is on when power on. Light source (wavelength): 950 Circuit protection: reverse connection protection, short circuit protection, surge protection. Sensitivity Adjustment: Tail knob adjustment. (Clockwise adjustment, the detection distance becomes farther; counterclockwise adjustment, the detection distance becomes closer). Use of environmental illumination: by the light surface illumination and other effects of distance attenuation. (incandescent lamp 300 lx below, sunlight 11000lx below). Operating ambient temperature: - 13F ~ 176F. Storage ambient temperature: -40F ~ 176F. Operating Humidity Range: 35 ~ 80%. Storage Humidity Positioning: 35 ～ 95%. Insulation Resistance: 20MΩ. Vibration: 10 ~ 55Hz double amplitude, 1.5mm X,Y,Z each direction 2H. Protection structure: IEC specification IP65. Material: Shell-ABS plastic, Lens-PMMA. Size: 68x21x21mm (length 68mm, diameter 21mm cylinder). Weight: 54 grams / 0.12 lbs Packsge Included: 1pcs NOYITO E3F-DS30P2 Proximity Switch Photoelectric Sensor Switch
