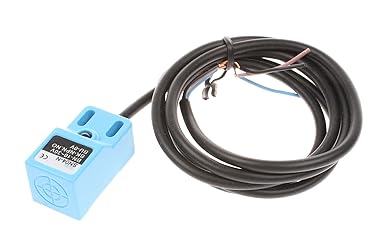

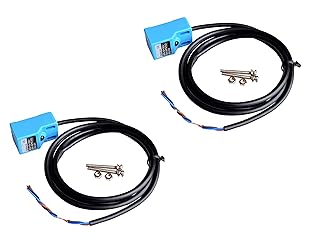

NOYITO Inductive Proximity Sensor Switch DC 10 to 30V 300mA DC 3-Wire NPN.NO Detection Distance 4mm SN04-N (Pack of 2)
Detalles del producto
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Parameter: Model Number: SN04-N. Output method: DC three-wire NPN.NO Operating voltage: DC10-30V. Detection distance: 4mm Detection object: metal / iron. Output current: 300mA. Working Principle: The proximity switch consists of three major components: an oscillator, a switch circuit, and an amplifier output circuit. The oscillator generates an alternating magnetic field. When the metal target approaches this magnetic field and reaches the sensing distance, eddy currents are generated within the metal target, causing the oscillation to attenuate and eventually stopping. Oscillator oscillation and stop changes are processed by the post-amplifier circuit and converted into a switching signal to trigger the drive control device to achieve non-contact detection purposes. The closer the target is to the sensor, the closer the target is to the sensor, the greater the damping in the coil; the greater the damping, the smaller the current of the sensor oscillator. The current loss of the inductive proximity switch, as the distance from the metal target decreases And decrease. Normally open (NO): In the normal state, the signal output line is in the disconnected state and no signal is output. When the object is sensed, it is closed and the signal is output. Normally closed (NC): In the normal state, the signal output line is in the closed state, and the signal is output continuously. When the object is sensed, it is disconnected and the signal is closed. Package Included: 2pcs Inductive Proximity Sensor Switch
$17,36
44% OFF
$9,64
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$17,36
44% OFF
$9,64
3 meses de gracia en diferidos y hasta 6 meses sin intereses con Pacificard
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Conoce más detalles
Model Number: SN04-N. Output method: DC 3-wire NPN.NO Operating voltage: DC10-30V. Detection distance: 4mm Output current: 300mA.
