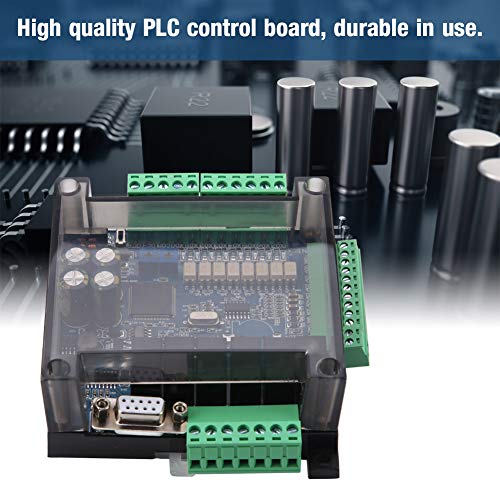

FX3U-14MR High Speed PLC Programmable Controller 8-Input 6-Output Industrial Control Board for Automation Systems
Disponibilidad
En stock
En stock
Peso con empaque
0.30 kg
0.30 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Input point X x0-x7, DC24 input, low level valid. X0-5 is the high-speed counting input port (default: 12K,100KHZ optional).
- Output analog voltage WR3A instruction, corresponding to the value 0-4095.
- The maximum speed current is 1A. External load common terminating + 24, the other end received the PLC output port Y.
- Y0-Y5 is optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A.
- Intermediate relay M: M0-M3071, the power loss preservation range can be set.
$125,87
55% OFF
$57,21
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$125,87
55% OFF
$57,21
Envío gratis
Llega en 26 o más días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Specification: Weight: 239g/8.4oz Input point:8 Output point:6 Power supply voltage: DC24V Output current: 5A Analog input: 6AD Analog output: 2DA High speed count:6 road 12K optional 100K Pulse output: No Floating point: Support Step motor: No support Memory capacity:8000 step Programming software: GX developer or GX works Program steps: 8000 steps Two communication ports: One RS232 (DB9) serial communication port FX3u protocol 38400,7, E, 1; One RS485 (485 optional configuration) (communication protocol can be set to D8120). The output point Y : Y0-Y5 optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A. Y0-1 high-speed output port (maximum 100K). PWM period 0-32767US. High The maximum speed current 1A. External load common terminating + 24, the other end received the PLC output port Y. Analog input: Six-way analog input,12 bit accuracy, input voltage:0-10V,0-20MA; Read the analog quantity with directive. The corresponding values 0-4095. Two-way potentiometer analog input, D8030, D8031. Analog output: 2-channel analog output, 12-bit accuracy, output voltage: 0-10v. Output analog voltage WR3A instruction, corresponding to the value 0-4095. Intermediate relay M: M0-M3071, the power loss preservation range can be set. Package List: 1x PLC Control Board
