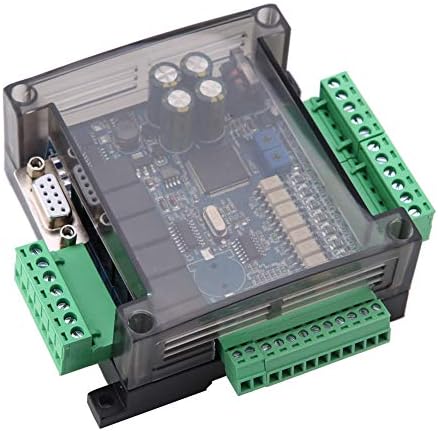

FX3U-14MR PLC Controller High Speed Industrial Control Board Programmable Logic with 8 Input 6 Output (FX3U-14MR)
Disponibilidad
En stock
En stock
Peso con empaque
0.31 kg
0.31 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Input point X x0-x7, DC24 input, low level valid. X0-5 is the high-speed counting input port (default: 12K,100KHZ optional).
- Output analog voltage WR3A instruction, corresponding to the value 0-4095.
- The maximum speed current is 1A. External load common terminating + 24, the other end received the PLC output port Y.
- Y0-Y5 is optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A.
- Intermediate relay M: M0-M3071, the power loss preservation range can be set.
$82,94
31% OFF
$57,20
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$82,94
31% OFF
$57,20
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Specification: Weight: 239g/8.4oz Input point:8 Output point:6 Power supply voltage: DC24V Output current: 5A Analog input: 6AD Analog output: 2DA High speed count:6 road 12K optional 100K Pulse output: No Floating point: Support Step motor: No support Memory capacity:8000 step Programming software: GX developer or GX works Program steps: 8000 steps Two communication ports: One RS232 (DB9) serial communication port is FX3u protocol 38400,7, E, 1; One RS485 (485 optional configuration) (communication protocol can be set to D8120). The output point Y : Y0-Y5 is optional relay or transistor output, relay output current 5A. The transistor output DC24V, the current maximum 1A. Y0-1 is high-speed output port (maximum 100K). PWM period is 0-32767US. High The maximum speed current is 1A. External load common terminating + 24, the other end received the PLC output port Y. Analog input: Six-way analog input,12 bit accuracy, input voltage:0-10V,0-20MA; Read the analog quantity with directive. The corresponding values 0-4095. Two-way potentiometer analog input, D8030, D8031. Analog output: 2-channel analog output, 12-bit accuracy, output voltage: 0-10v. Output analog voltage WR3A instruction, corresponding to the value 0-4095. Intermediate relay M: M0-M3071, the power loss preservation range can be set. Package List: 1x PLC Control Board
