SKU/Artículo: AMZ-B0DYTZ9SL2
Wonrabai

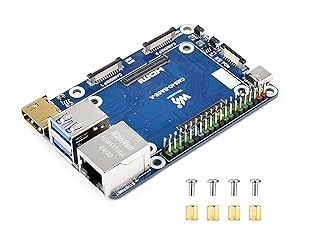

Mini Base Board Compatible with Raspberry Pi Compute Module 5, Compact Design with Multiple Connectors-2x USB3.2 Gen1, 2xUSB2.0, Color-Coded 40PIN GPIO Header,HDMI,MIPI, PCIe Interfaces,etc.
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.30 kg
0.30 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Mini Base Board for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products Onboard multiple connectors, more convenient to use It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users Gigabit Ethernet RJ45 connector for Networking. With 16PIN PCIe (PCIe Gen2/3 x1) Connector and color-coded Pi 40PIN GPIO header HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector) Features and Precautions 1. Do not plug or unplug any device other than USB and HDMI when the device is powered on 2. Type C can be used as a USB SLAVE interface to flash images 3. Onboard default 2 USB 3.2 Gen1 ports 4. When you need to use POE, connect the POE jumper cap to the EN position 5. Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version) 6. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode 7. Do not connect other devices when using Type C to flash. Insufficient power supply for flashing will cause the device to be unrecognized 8. The USB ports have a total maximum power output of 2A Comes with Online Tutorial Usage Guide and Precautions , Please check: n9.cl/tutk98 Package Content CM5-IO-BASE-A x1 Screws pack x1
S/ 135.03
49% OFF
S/ 69.25
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
S/ 135.03
49% OFF
S/ 69.25
Hasta 6 cuotas sin intereses con BCP, BBVA y Diners
Llega en 5 a 10 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles

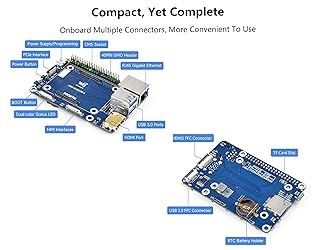

Mini Base Board for Compute Module 5, suitable for evaluating the Compute Module 5 or being integrated into end products Connecting with Compute Module 5, standard CM5 socket and color-coded Pi 40PIN GPIO header, suitable for Compute Module 5 Lite/eMMC series module With powerful features are integrated into a compact design, it is only the size of a bank card. Onboard multiple connectors, more convenient to use. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users Gigabit Ethernet RJ45 connector for Networking. With 16PIN PCIe (PCIe Gen2/3 x1) Connector and color-coded Pi 40PIN GPIO header HDMI port x 2 (including one port via FFC connector), supports dual 4K outputs for Video. Onboard 5V, 4PIN JST-SH PWM connector and 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector) Comes with Online Tutorial Usage Guide and Precautions , Please check: n9.cl/tutk98
