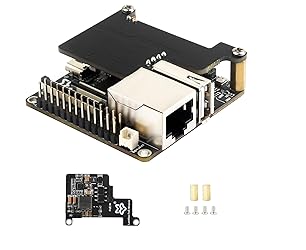

Luck-Fox Pico Ultra PoE Kit RV1106 Linux Micro Development Board, Integrate ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors, 256MB DDR3L 8GB EMMC,Support MIPI CSI, GPIO, Interface,etc (with PoE Module)

Conoce más detalles

This is Version Luck-Fox Pico Ultra PoE Kit , with 8GB EMMC 256MB Memory, with PoE Module, without W-i-F-i It is a cost-effective Linux micro development board, based on the Rock-chip RV1106 chip to provide a simple and efficient development platform for the developers,Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths Supports a variety of interfaces including MIPI CSl, RGB LCD, GPIO, UART, SPI, 12C, USB, etc. which is ideal for embedded applications. Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU Built-in Rock-chip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4 Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc. Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size With PoE Module, Supports PoE Power Supply, Provides Both Network Connection And Power Supply for Luckfox Pico Ultra board In Only One Ethernet Cable
