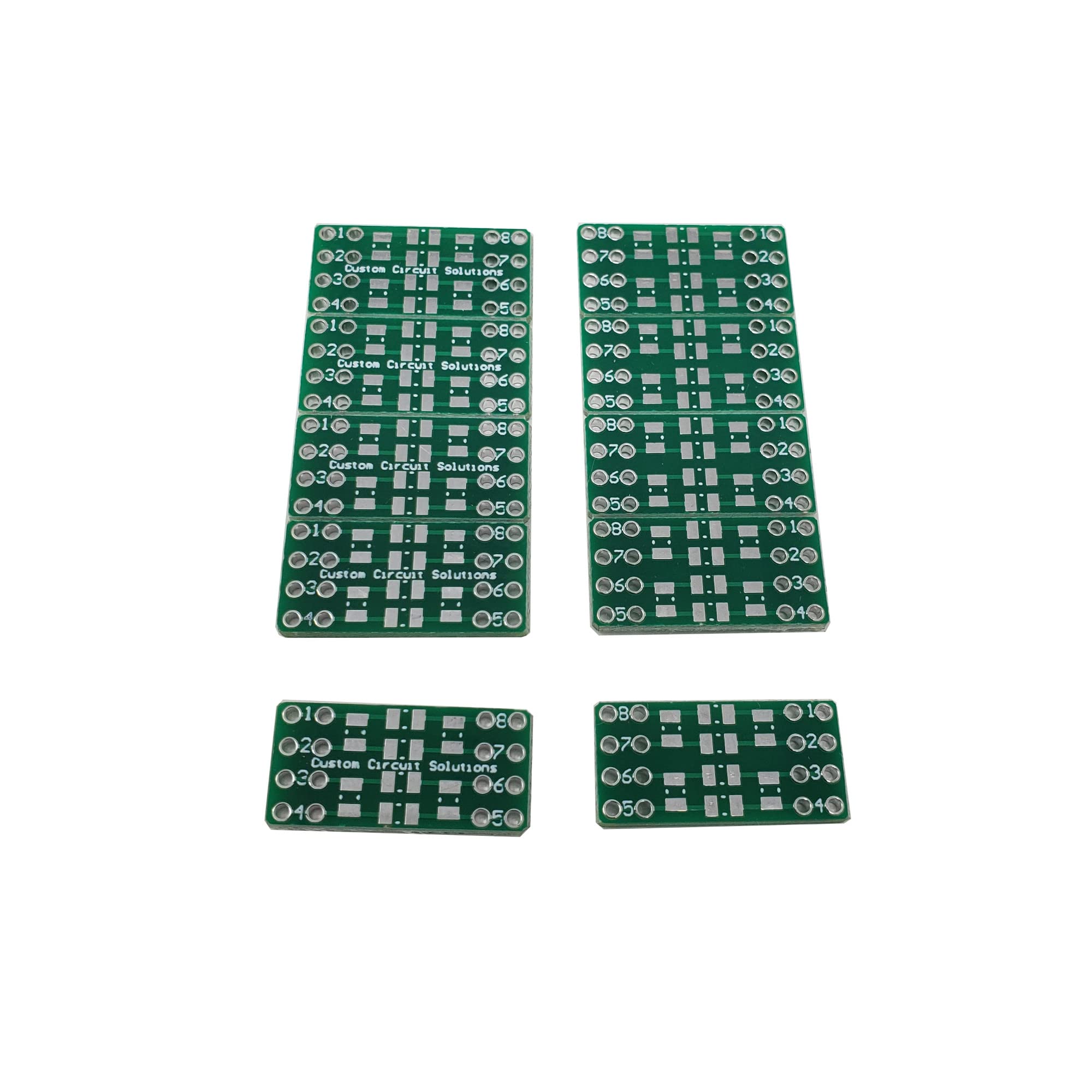

Custom Circuit Solutions – SMD to DIP Breakout PCB Module, 4-Pin, D2PAK (DPAK) to DIP Adapter Header with Integrated SMT Resistor and/or Capacitor Pads – 8 Pieces

Style:

4-Pin D2PAK LF

10-Pin MSOP LF

16-Pin SOIC LF

16-Pin SOP

28-Pin SOIC LF

4-Pin D2PAK LF

6-Pin SOT LF

8-Pin SMT Res/Cap

8-Pin SOIC LF

8-Pin TH Breadboard LF

SOT223 LF

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.30 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

Custom Circuit Solution’s SMT to DIP solderable breadboard prototype modules are much more than a traditional SMT breakout PCB. They offer many benefits including flexible mounting options with dual rows of solderable holes, the ability to incorporate passive devices directly on board (such as 0603/0805 footprint passive components), as well as oversized pads to simplify hand soldering. By incorporating most or all of the circuit’s components directly onboard, you not only make the circuit reusable, it also becomes more reliable, and the signal quality is vastly improved with the minimized lead parasitics when compare to through hole passives plugged into a solderless breadboard. Alternative sized versions are available if necessary. This SMD header can mount directly to standard breadboards or can be wire jumped directly to other circuits. These devices are beneficial for professional engineers and home hobbyists alike. Stock your makerspace lab with these today.

S/ 57.90

49% OFF

S/ 29.69

S/ 57.90

49% OFF

S/ 29.69

Llega en 5 a 10 días hábiles

con envío

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

Modular Component Breakout Boards such as these include both an SMD adapter (D2PAK or DPAK) and passive component pads in a single reusable SMD breakout board. Dual Rows of Solder Pin Holes provides much more flexibility in soldering and mounting your circuit. Jumper wires can also be soldered between holes, reducing number of breadboard connections. Oversized Solder Pads simplify hand soldering. Can be easily soldered without special equipment in as little as a few seconds. See our website for easy soldering tips. 0603/0805 Footprint Pads between each pin and the local common plane (or pin to pin) allow for integrated onboard SMT res/cap connections, greatly reducing the number of wired connections. Manufactured with leadfree HASL for RoHS compliance

Custom Circuit Solutions – SMD to DIP Breakout PCB Module, 4-Pin, D2PAK (DPAK) to DIP Adapter Header with Integrated SMT Resistor and/or Capacitor Pads – 8 Pieces
