SKU/Artículo: AMZ-B07G6LD8XZ

NOYITO

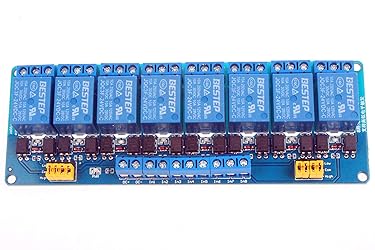

NOYITO 8 Channel Relay Module High Low Level Trigger with OPTO-Isolated Load DC 30V AC 125V 250V 10A for PLC Automation Equipment Control Industrial Control Circuit Modification (24V)

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.30 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

Electrical parameters: Supply voltage: DC24V; Quiescent current: 5mA; Maximum operating current: 400mA; Trigger mode: High / Low Level Trigger; Load voltage: DC 30V / AC 250V; Load current: 10A; Module life: 10 million times; Switch the maximum frequency: ≤ 5KHz; Product weight: 124 grams; Size:141.5x50x18.5mm (LxWxH); Trigger voltage range: High-level trigger: DC 12-24V relay on; DC 0-8.5V relay off; ---- Low-level trigger: DC 0-12V relay on; DC 13-24V relay off; Pacakage Included: 1PCS NOYITO 8-Channel Relay Module

S/ 49.85

49% OFF

S/ 25.57

S/ 49.85

49% OFF

S/ 25.57

Llega en 5 a 10 días hábiles

con envío

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification. The modules comply with international safety standards with isolation slots in the control and load areas. Each channel with optocoupler isolation, anti-interference ability. Using high-power relay, control the load up to 10A. Each channel with relay on / off LED indicator. Module load voltage: DC30V / AC 250V 10A ; Module Power Supply : DC 5V / 12V / 24V（Module supply voltage must be DC, and the voltage to be consistent with the relay voltage.）.

NOYITO 8 Channel Relay Module High Low Level Trigger with OPTO-Isolated Load DC 30V AC 125V 250V 10A for PLC Automation Equipment Control Industrial Control Circuit Modification (24V)
