Artículo: AMZ-B0G7S8QNPP

Jrready

JRready Bundle with 3 Items: ST6519 Mini-Fit Jr. 2 4 6 8Pin Connector Crimp Terminals 18-24AWG +DRK-D173P Mini-Fit Jr. Molex Pin Extractor + ST6527 Molex Pin Kit093 062 MLX Micro-Fit Mini-Fit Jr

Disponibilidad
En stock
Peso con empaque
0.83 kg
Devolución
Condición
Nuevo
Producto de
Amazon

Sobre este producto

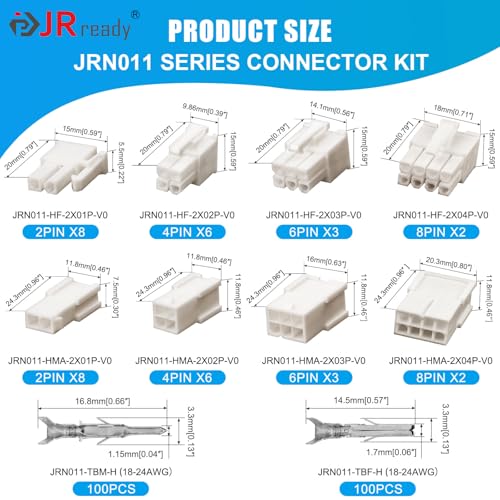

  • JRN011 SERIES CONNECTOR: 4.2mm pitch connector is made of PA66, Flame retardant grade is UL94-V0. The operating temperature range is from -40℃ to +105℃. Under environmental conditions of 23℃ ± 5℃, the temperature rise at 9A current is no more than 30℃. The connector can be mated and unmated over 50 times. Exposure to air may result in slight color differences, but it doesn't affect the performance of the product. If you have any questions about this, please contact us anytime.
  • CONNECTOR DESIGN: Connectors are ideal for power applications up to 9 amps per circuit, and feature fully isolated terminals, positive housing locks, low engagement forces, and polarized housings. The receptacle housing can be connected with a variety of plug options, including panel mount and free hanging plugs, or vertical and right angle headers.
  • ST6527 Terminal Types: Various types of Molex terminals can meet your different needs. MOLEX terminals: JRN001 (MLX) terminals, JRN002 (.093") terminals, JRN003 (.062") terminals, JRN009 (Micro-Fit) terminals, JRN011 (Mini-Fit Jr.) terminals;
  • [Universal Extraction Tool] The DRK-D173P is a Molex pin extractor (equivalent to Molex 11-03-0044), specifically designed for Molex Mini-Fit Jr. 5557 and 5559 power connectors (ATX/EPS/PCI-E). This Mini-Fit Series terminal atx pin extractor tool is ideal for professional and technical use.
  • [Wide Compatibility] The JRready Mini-Fit Jr. Extraction tool is compatible with Mini-Fit Jr, Mini-Fit HCS, and Mini-Fit Plus HCS male and female crimp terminals. It supports 14-30 AWG cables and 2.00mm (.079") pitch board-in male crimp terminals for 24-28 AWG cables.
