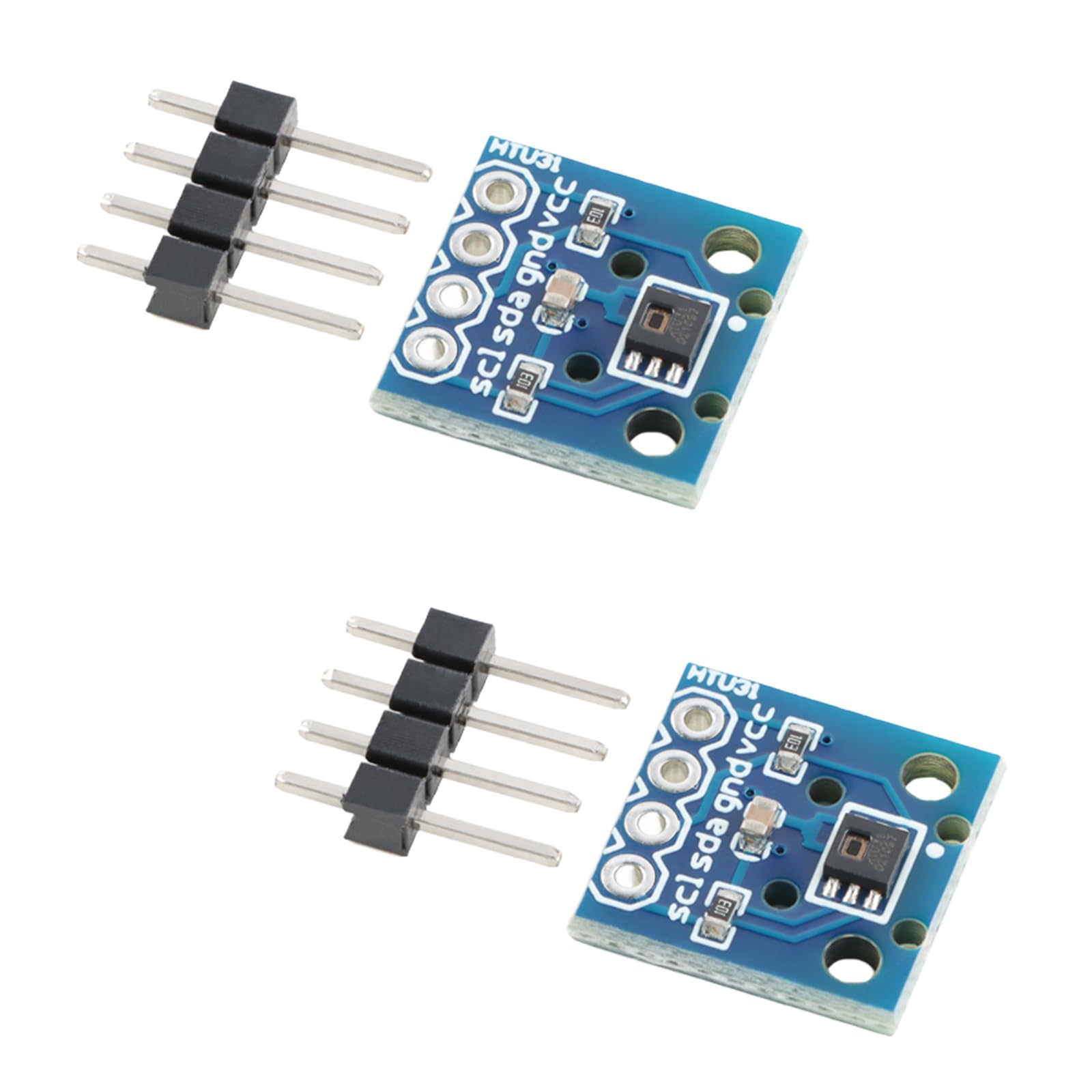

2pcs HTU31D Digital Humidity and Temperature Sensor Module with I2C Interface, 2.4V-5.5V DC, High Accuracy
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- 【High Accuracy Settingal Monitoring】 HTU31D digital sensor with ±2% RH humidity accuracy and ±0.2°C temperature accuracy; supports 0% to 100% RH and -40°C to 125°C operating range; Suitable for smart home and industrial applications
- 【Low Power Consumption for Battery-Powered Devices】 1.04µA operating mode at 1Hz sampling; 0.13µA standby current; compatible with lithium battery and USB power supply; extends device life in portable systems
- 【I²C Interface with Dual Address Support】 I²C communication up to 400kHz; configurable addresses 0x40 and 0x41 for parallel connection; built-in CRC check ensures reliable data transmission in complex Settings
- 【Anti-Condensation Heating for Harsh Conditions】 Integrated heater eliminates condensation effects; supports high humidity and high temperature Settings; self-calibration process available for long-term stability
- 【Compact DFN Package with IP67 Optional Protection】 2.5mm × 2.5mm × 0.9mm DFN package; optional IP67 rating with external filter; easy to integrate into space-constrained designs for automotive and industrial use
$32,09
55% OFF
$14,59
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$32,09
55% OFF
$14,59
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Product Parameters Input Voltage: 4.4V-5.5V DC (Wide Voltage Compatible) Humidity Range: 0-100% RH (Non-Condensing) Humidity Accuracy: ±2% RH (Typical @25°C) Temperature Range: -40°C to +125°C Temperature Accuracy: ±0.2°C (Typical @0°C-90°C) Resolution: Programmable (Humidity: 0.007-0.020%; Temperature: 0.012°C-0.040°C) Response Time: Humidity 3s (T63%), Temperature 10s Communication: I²C Interface (Up to 400kHz, Address 0x40/0x41 Configurable) Power Consumption: 1.04µA (Operating @1Hz), 0.13µA (Standby) Protection: IP67 Optional (With External Filter) Package: 6-Pin DFN (2.5mm × 2.5mm × 0.9mm) Pin Functions VDD: Power Positive (4.4V-5.5V DC) GND: Power Ground SCL: I²C Clock Line (Requires 4.7kΩ Pull-up to VDD) SDA: I²C Data Line (Requires 4.7kΩ Pull-up to VDD) RST: Hardware Reset (Active Low, >1μs Pulse) IC_ADD: Address Select (GND=0x40, VDD=0x41) FAQ 1. Humidity Drift >3% RH? Run self-calibration: Send command 0x30,0xA2 to activate heater for 30s, wait 10 minutes, then resample. 2. I²C No Response? Verify: IC_ADD pin level matches address (default 0x40 requires GND). VDD ≥2.4V (avoids under-voltage sleep). SDA/SCL pull-up resistors (4.7kΩ to VDD) are present. 3. Abnormal Data in High Humidity/Temperature? 4. Extend Battery Life? Use single sampling mode (command 0x2C,0x06) and set interval to 60s (sleep current: 0.13µA). 5. CRC Errors? Keep SDA/SCL wires away from power noise. Add 10µF + 0.1µF capacitors to VDD. Reduce I²C clock to 100kHz .
