Serial wombat
SW8B Velocity Smart I2C I/O Expander and Real Time Embedded CoProcessor with Terminal Blocks 1-Pack
Number of Items:
1
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Terminal Blocks, header sockets and QWIIC/STEMMA QT I2C connectors eliminate the need for soldering for basic operation of this board

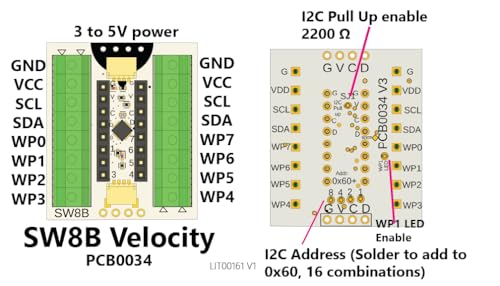

- Easily add 8 more I/O or A/D channels to your project through I2C. On board solder-jumpers allow selection of 16 different addresses, and optional 2200 ohm bus pull-up resistors
- Many support videos and extensive documentation available online. Firmware can be upgraded or customized using the preprogrammed I2C bootloader
- Each pin runs a state machine that can be assigned a specific function such as Servo, Rotary Encoder, A/D conversion, UART Bridge, PID control, PWM Generation, Kepad decoding, Frequency output, button debouncing, pulse timing and much more
- Use up to 16 boards on the same I2C Bus
- 3.3V or 5V operation. 5V operation is possible while communicating on a 3.3V I2C bus, allowing mixed voltage circuits or analog inputs.
- Power indicator LED
$27,18
31% OFF
$18,75
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$27,18
31% OFF
$18,75
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles

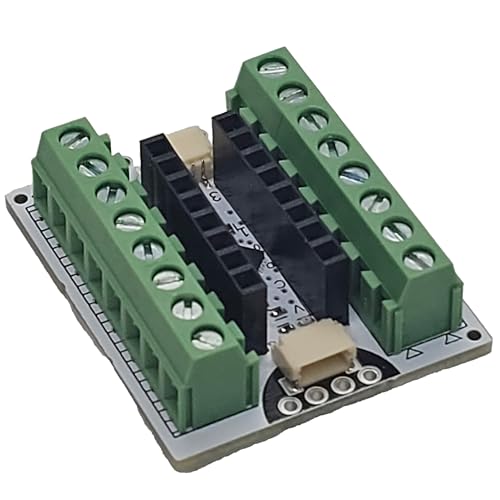

The Serial Wombat 8B SW8B Velocity Board is an I2C peripheral that provides smart I/O expansion to solve common interfacing problems - ADC, PWM, Servo, GPIO, rotary encoder reading, Button Debouncing, I2C To UART and more. It has a separate microcontroller that can offload annoying or interrupt intensive I/O tasks from your main board. It's open-source firmware running on an inexpensive CH32V003 microcontroller. The hardware designs are open-source hardware. You don't program a Serial Wombat board. You command it in real time like any other I2C device using available Arduino, Python/MicroPython or C# libraries. This board requires no soldering and has convenient Screw Down Terminal Blocks, QWIIC / STEMMA QT I2C connectors and header sockets.
