Artículo: AMZ-B0F1KCT21X

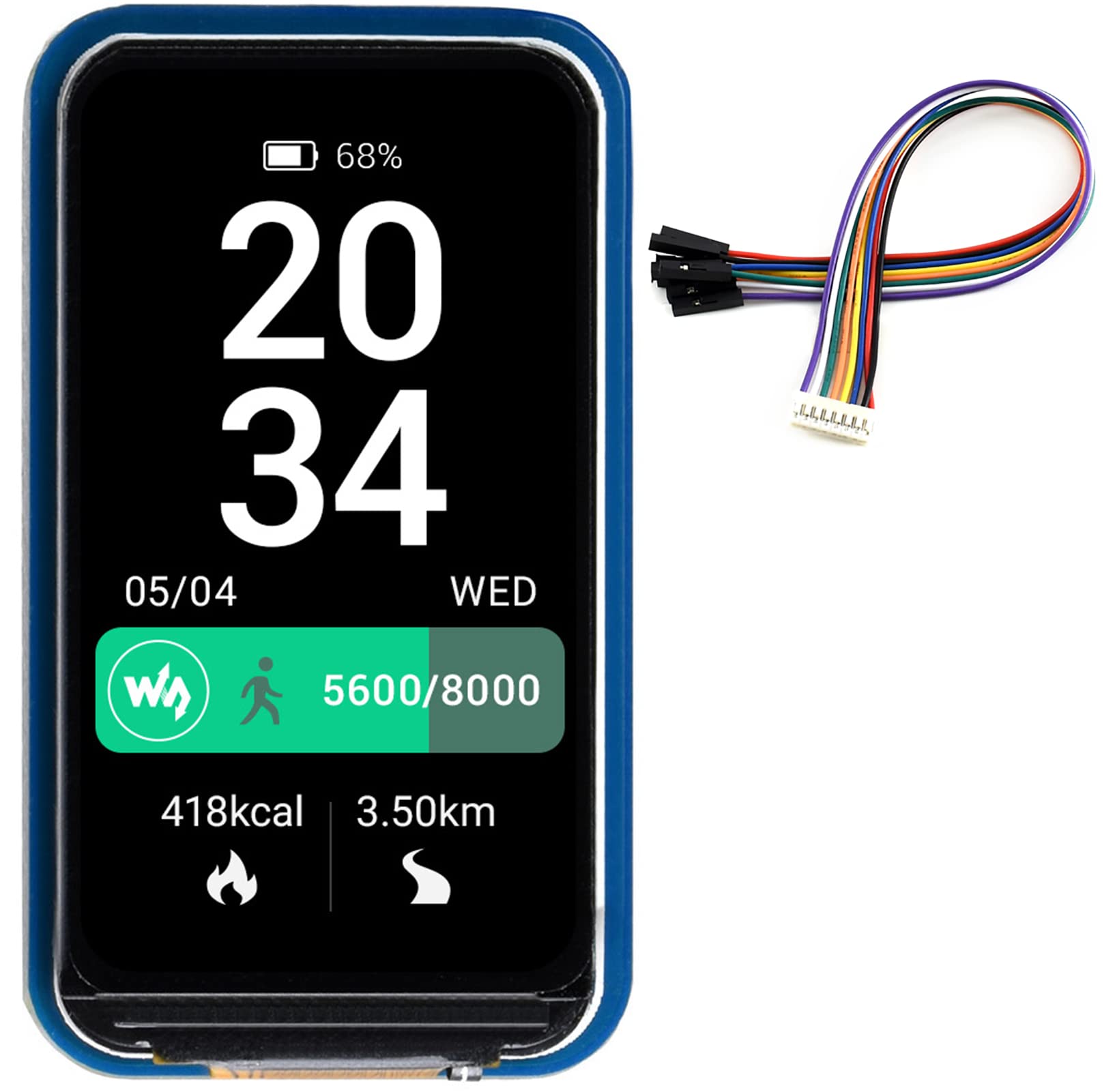

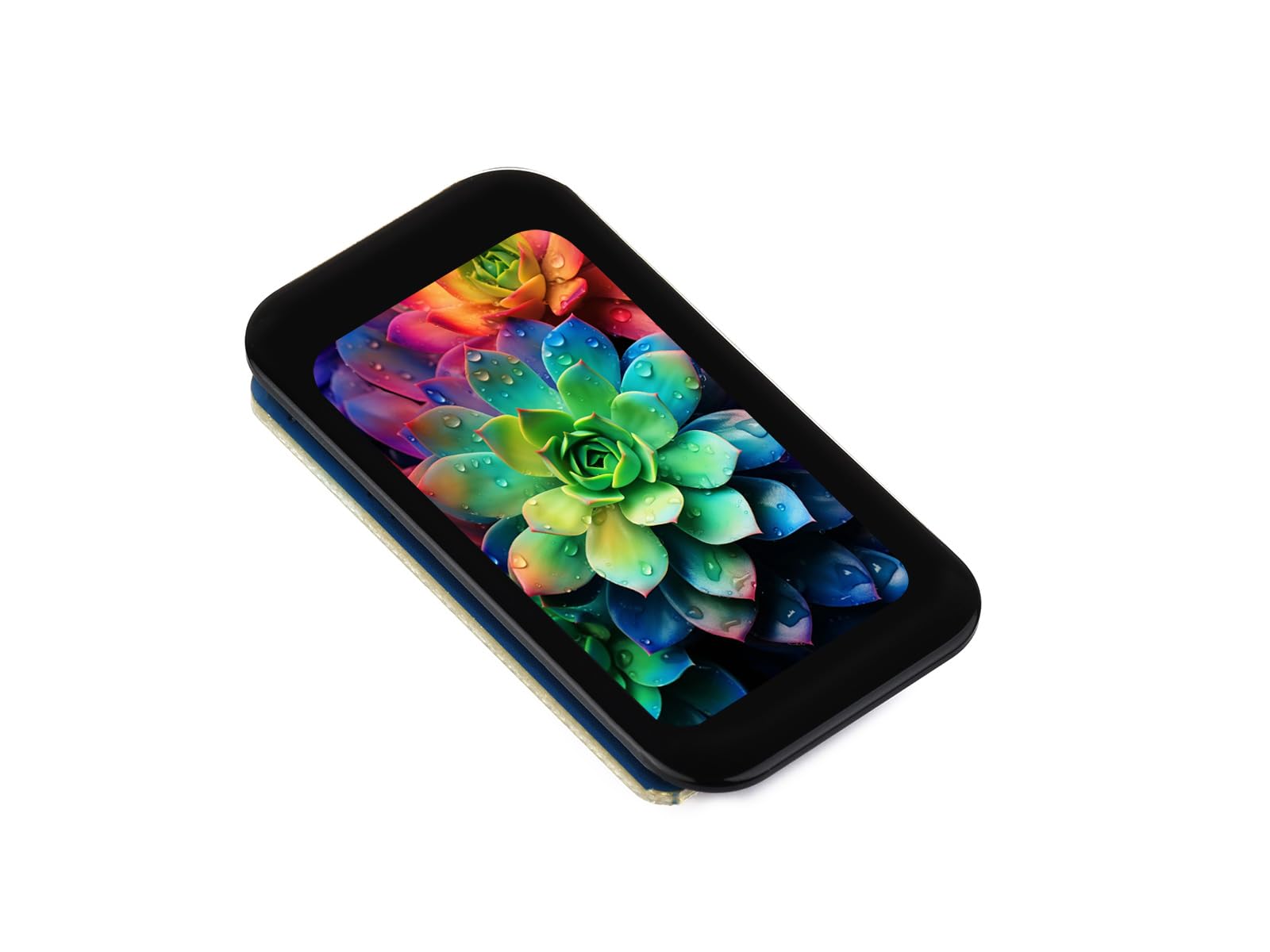

1.47inch LCD Display Module with Touch Panel, Micro LCD Display, 172×320 Resolution, IPS, SPI and I2C Communication, 262K Display Color (1.47inch Touch LCD)
En stock
0.20 kg
No
Nuevo
Amazon
- 172×320 resolution, 262K colors, clear and colorful displaying effect.
- High touch screen transmittance, fast response and long lifetime.
- Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspbery Pi / ESP32S3 / Raspbery Pi Pico / for arduino.
- Comes with online development resources and manual (examples for Raspbery Pi / ESP32S3 / Raspbery Pi Pico / for arduino).
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Features at a glance ● 172×320 resolution, 262K colors, clear and colorful displaying effect. ● High touch screen transmittance, fast response and long lifetime. ● Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspbery Pi / ESP32S3 / Raspbery Pi Pico / for arduino. ● Comes with online development resources and manual (examples for Raspbery Pi / ESP32S3 / Raspbery Pi Pico / for arduino). Specifications Operating voltage: 3.3V / 5V Resolution: 172 × 320 pixels Display Driver: JD9853 Touch Driver: AXS5106L Display Interface: 4-wire SPI Touch Interface: I2C DISPLAY PANEL: IPS Touch Type: Capacitive Display size: 17.75 × 32.93mm Module size: 22.05 × 41.69mm Package Content 1. 1.47inch Touch LCD x1 2. SH1.0 13PIN cable ~100mm x1 3. FFC cable x1
