Artículo: AMZ-B0DRV88Z16

Godiymodules

1PCS Brushless Motor Controller for Simple FOC Mini DC Brushless Motor Controller Driver Board FOC Control Driver SVPWM SPWM Control Board Module

Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
Condición
Nuevo
Producto de
Amazon

Sobre este producto
  • 1PCS Brushless Motor Controller
  • For Simple FOC Mini DC Brushless Motor Controller Driver Board FOC Control Driver SVPWM SPWM Control Board Module
  • 1. Input supply voltage: 8~30V 2. Maximum output current per channel: 2.5A 3. On-board 3.3V LDO output, maximum current 10mA 4. Input control signal compatible with 3.3V and 5V. 5. Support SPWM and SPVMW control algorithms 6. Powerful open source library, quick to start.
  • The SPWM and SPVMW control algorithms are supported, but the traditional 6-step commutation control algorithm is not.

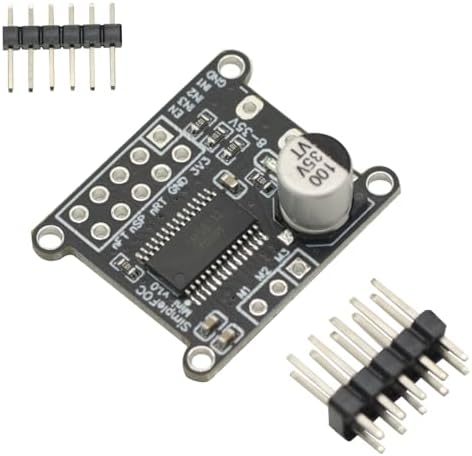

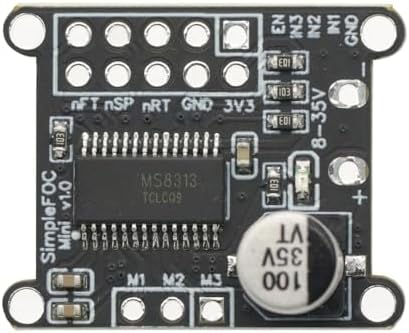

  • The SimpleFOCMini DC brushless motor driver board uses the DRV8313 chip. The DRV8313 provides three independently controllable half-H-bridge drivers, mainly used to drive brushless DC motors. Only the control signal and the motor UVW three-phase line need to be connected to control the motor rotation.
