Artículo: AMZ-B0CM3C8KFT

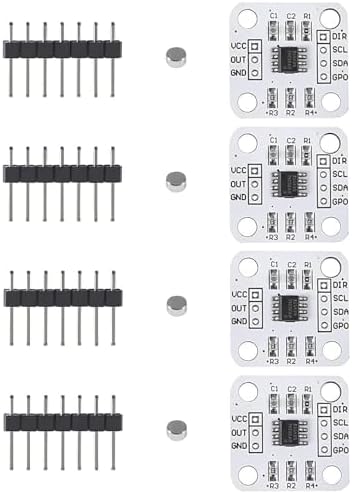

WWZMDiB 4Pcs AS5600 Magnetic Encoder 3.3V 12bit high Precision Magnetic Induction Angle Measurement Sensor Module,Mainly Used to Obtain Information Such as Progressive Motor Speed
En stock
0.20 kg
Sí
Nuevo
Amazon
- 💎【AS5600 Magnetic Encoder】:This module is mainly placed behind the stepper and then stick a magnet on the main shaft of the stepping motor. Information such as the rotation speed of the spindle can be obtained through magnetic encoding.
- ⚡【Supply Voltage】: 3.3 V
- 🥇【Product type】:Non-contact magnetic induction
- 🥈【Out mode】:IIC ,PWM, voltage, etc.
- 🥉AS5600 magnetic encoder is often used to measure the angular displacement of a motor.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
WWZMDiB 4Pcs AS5600 Magnetic Encoder 3.3V 12bit high Precision Magnetic Induction Angle Measurement Sensor Module,Mainly used to obtain information such as progressive motor speed💎【AS5600 Magnetic Encoder】:This module is mainly placed behind the stepper and then stick a magnet on the main shaft of the stepping motor. Information such as the rotation speed of the spindle can be obtained through magnetic encoding.⚡【Supply Voltage】: 3.3 V🥇【Product type】:Non-contact magnetic induction🥈【Out mode】:IIC ,PWM, voltage, etc.🥉AS5600 magnetic encoder is often used to measure the angular displacement of a motor.💎【Interface description】:VCC: 3.3VGND: Power GroundOut: PWM / analog voltage outputDIR: Rotational direction (grounding=clockwise value increases ; Connect to VCC =Clockwise values decreased)SCL: IIC communication clock lineSDA: IIC communication data lineGPO: Mode selection (internal pull-up, ground=Programming mode B)💎【Package Includes】:4Pcs AS5600 Magnetic Encoder4Pcs 7Pin 2.54mm Single Row Straight Male Header Connector4Pcs Small magnets
