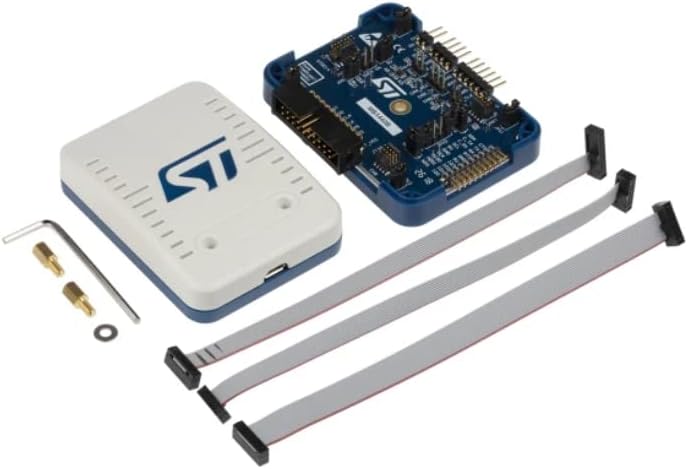

STLINK-V3SET， Hardware Debuggers STLINK-V3 Modular in-Circuit debugger and Programmer for STM32/STM8

0 5 5 5

5 calificaciones

Disponibilidad
En stock

Peso con empaque
0.24 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

Tool Is For Evaluation Of:STM8, STM32
Core:ARM Cortex M
Type Debugger, Programmer (In-Circuit/In-System)
Stand-alone probe with modular extensions /Self-powered/Direct firmware update support (DFU) through a USB connector (Micro-B)/USB 2.0 high-speed compatible interface/
JTAG / serial wire debugging (SWD) specific features: – 3 to 3.6 V application voltage support and 5 V tolerant inputs – Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) – JTAG communication support – SWD and serial wire viewer (SWV) communication support
SWIM specific features (only available with adapter board MB1440): – 1.65 to 5.5 V application voltage support – SWIM header (2.54 mm pitch) – SWIM low-speed and high-speed modes support
Virtual COM port (VCP) specific features: – 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs – VCP frequency up to 15 MHz – Available on STDC14 debug connector (not available on MIPI10)

$239,25

60% OFF

$95,70
