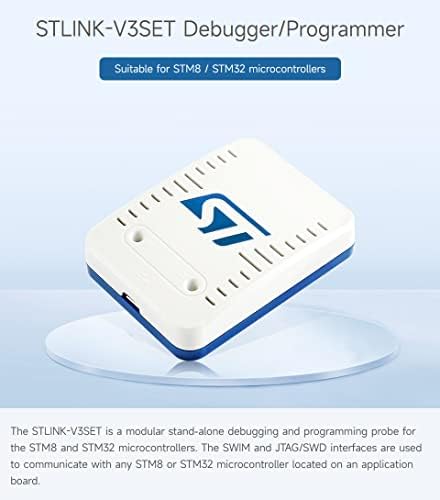

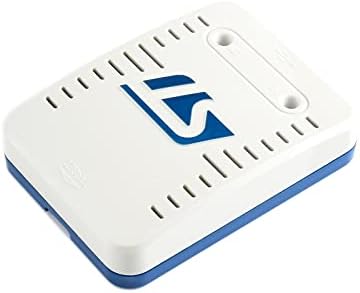

Waveshare STLINK-V3SET Modular in-Circuit Debugger Programmer for STM8 STM32 USB JTAG
Disponibilidad
En stock
En stock
Peso con empaque
0.31 kg
0.31 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- A modular stand-alone debugging and programming probe with modular extensions for the STM8 and STM32 microcontrollers
- Provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART and bridge interfaces (SPI I2C CAN GPIOs) allowing for instance the programming of the target through bootloader.
- Self-powered through a Micro-B USB connector (does not provide power supply to the target application)
- USB 2.0 high-speed compatible interface
- Direct firmware update (DFU) support to use with more future devices
$168,24
31% OFF
$116,03
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$168,24
31% OFF
$116,03
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Key Features Stand-alone probe with modular extensions Self-powered through a Micro-B USB connector (does not provide power supply to the target application) USB 2.0 high-speed compatible interface Direct firmware update (DFU) support to use with more future devices JTAG / serial wire debugging (SWD) specific features: *3 V to 3.6 V application voltage support and 5 V tolerant inputs *Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch) *Flat cable for 20-pin JTAG/SWD (2.54 mm pitch) (extra free cable from Waveshare) *SWD and serial wire viewer (SWV) communication support SWIM specific features (only available with adapter board MB1440): *1.65 V to 5.5 V application voltage support *SWIM header (2.54 mm pitch) *SWIM cables with dual 4-pin connectors / 4-pin connector to separated pins (2.54 mm pitch) (extra free cables from Waveshare) *SWIM low-speed and high-speed modes support Virtual COM port (VCP) specific features: *3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs *VCP frequency up to 15 MHz *Available on STDC14 debug connector (not available on MIPI10) Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features: *3 V to 3.6 V application voltage support and 5 V tolerant inputs *Signals available on adapter board only (MB1440) *Drag-and-drop Flash programming *Two color LEDs: communication power Supported Software STM32CubeProgrammer/ KEIL RVMDK/ IAR EWARM/ GCC-based IDEs Supported Devices All STM8 MCUs with SWIM interface/All STM32 MCUs with JTAG / SWD interface
