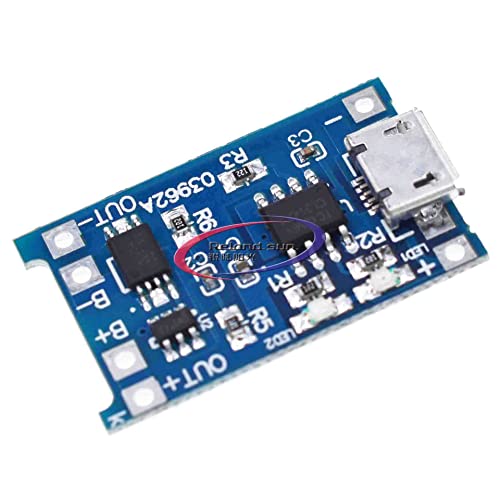

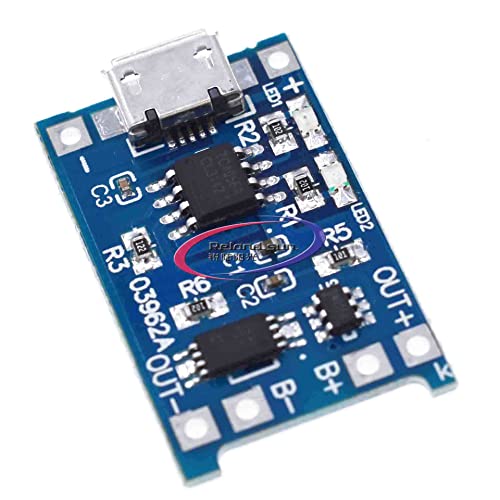

5V 1A 18650 Board TP4056 Board Micro USB Module with Protect
Disponibilidad
En stock
En stock
Peso con empaque
0.76 kg
0.76 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- The Hayatec module uses high quality charging chip TP4056, the external circuit is simple, good high precision charging.
- The module is designed with user convenience. Allows to adjust the current as long as the change in the circuit board of the fixed resistance, you may change the output to 100mA-1000mA,
- Micro USB input terminal with a female, can be directly input to do with the phone charger rechargeable lithium battery, And still retains the input voltage wiring pads, can be very convenient DIY.
- It can be used for voltage 3.6 3.7V, etc. 18650, polymer and other lithium battery charge
- Board size : 17.16 mm x 26.17 mm (Hayatec UK Registered Trademark)
$11,44
31% OFF
$7,89
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$11,44
31% OFF
$7,89
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Description: 1.Inputs with MICRO USB female, can be directly input to do with the phone charger rechargeable lithium battery. 2. Note: The charge should disconnect the load OUT terminal on the positive and negative cannot be wrong. 3.Note: The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B+ B-, then draw a line on the short open also need recharged to activate the protection circuit. Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge. 4. + MICRO USB female and next - pads for the power input, access 5V. 5. Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full. Specification: Input voltage: 5VCharging cut-off voltage: 4.2V ± 1% Maximum charge current: 1000mA Battery over-discharge protection voltage: 2.5V Battery overcurrent protection current: 3A Board size: 2.6 x 1.7cm/1.02 x 0.67inch Features: 1.Charging and discharging indication 2.Internally installed charging and discharging power MOS 3.Preset 4.2V charging voltage, precision ±1% 4.Max 8uA standby current 5.Integration charging management and discharging management 6.Intelligent temperature control and over temperature protection 7.Integration output overvoltage protection, short circuit protection, overload protection 8.Integration overcharging and over discharging protection 9.Support trickle mode and zero voltage charging When charging: red light flashing; full charged: red light for a long time. Package includes: 1 x 18650 Micro USB Charging Boards
