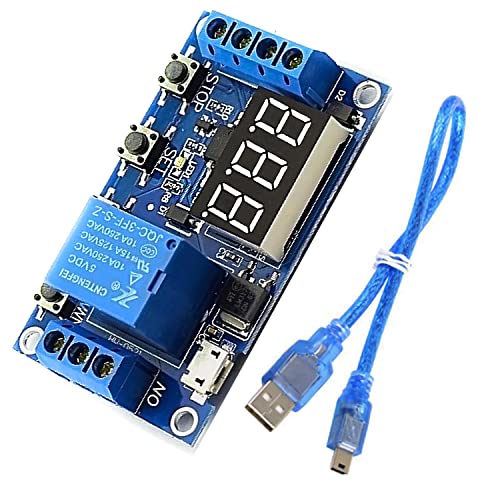

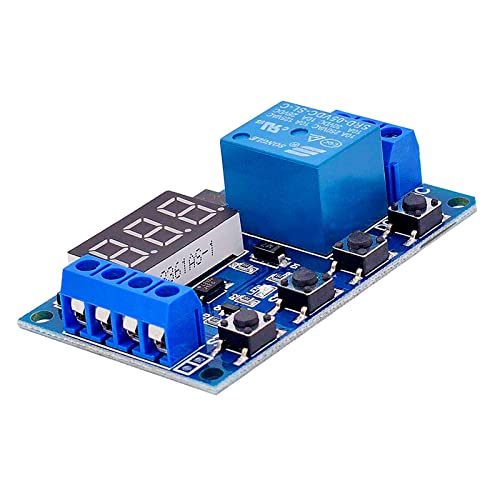

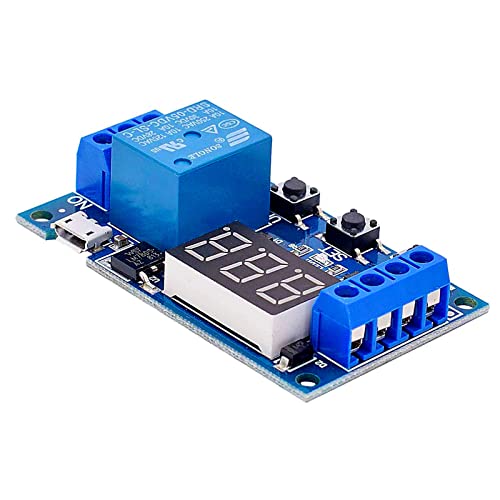

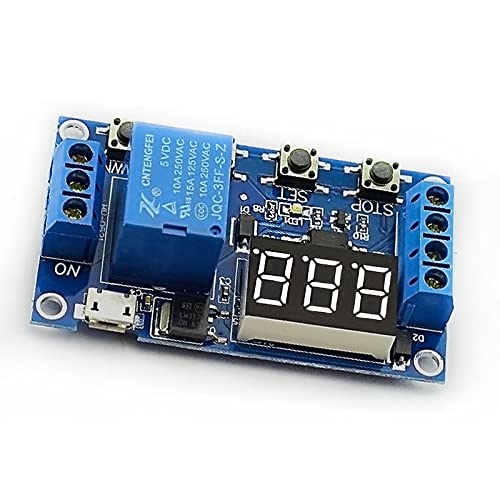

DEVMO DC 5V/12V/ 1 Channel Relay Board Programmable Multifunctional Module Cycle Timing Circuit Switch Cycle Timer Delay Trigger Disconnect Module
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Industrial/Scientific/Industrial Electrical/Controls/Indicators/Relays
- Input Voltage Range: 6-30V supporting micro USB 5.0V power supply, convenient to use.
- Time Adjustable Range: 0.1s to 999 minutes continuously adjustable, clear LED display, convenient to check the value.
- With the function of stop key (STOP button), and opto-isolator, enhance the ability of anti-interference; reverse connect protection function to protect the module from burning out.
- Can set different OP, CL, LOP etc. parameters, which are separate with each other to store, all the setting parameters are automatically saved while power turn off.
$39,17
49% OFF
$20,09
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$39,17
49% OFF
$20,09
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Product Description: Size: 6.2*3.8*1.7cm Work Voltage: 6-30V support micro USB 5.0V power supply Trig Source: High voltage level trigger ( 3.0V-24V ) Output Capability: Can control the device within DC 0-30V 5A or AC 0-220V 5A Quiescent Current: 20mA Work Current: 50mA Service Life: More than 100 thousand times Work Temperature: -40 - + 85 degree Main Interface: Off work status shows "000" (no decimal point ), work status has decimal point, very clear. Parameter Specification: OP: Turn-On Time; CL: Turn-Off Time; LOP: Cycle Index ("---" means limitless cycle ), the parameters are independent with each other, but shared by each model. Timing setting: After setting the parameter values in the mode selection screen by a short press STOP button, select the time range; XXX 1 second to 999 seconds XX.X 0.1 seconds to 99.9 seconds X.X.X. 1 minute to 999 minutes Work Mode: Long press SET key to enter/quit mode selection screen. Relays Enable Mode: In the main interface, short press the STOP button to switch between ON and OFF. Sleep Mode: Long press STOP button for two seconds then release, to switch C-l and O-d state. Note: For details, please refer to the product picture Package Include: 1pcs 12V 1 Channel Multi-functional Time Delay Relay (blue board) 1pcs USB to Micro USB Power Line
