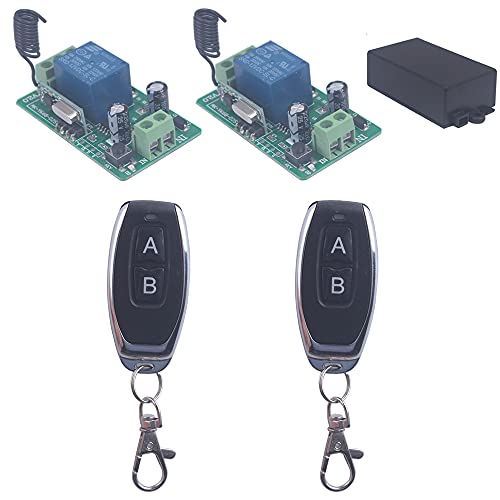

DC 12V 10A Relay Switch 1CH Wireless Remote Control Switch 433MHz Transmitter Receiver Momentary/Toggle Switch 12V Opener Garage Door keypad Universal Wireless ON Off (2* Control+2* Receiver)
Color:
2* Control+2* Receiver
En stock
0.21 kg
Sí
Nuevo
Amazon
- 🏠 [Control Voltage: DC 12V,Low volt Control High Volt Switch,Relay load: 10A 1V-250V,10A.
- 🏠[Multi-Function] Is the learn code switch, compatible and remove control code,randomly combination control
- 🏠 [Easy to install and use]. The wireless signal can pass through walls, floors and doors
- 🏠[Multi-function circuit switch] can be modified for multi-purpose circuit to control other circuit road.
- 🏠[wide applications range]The remote switches are used in industrial homes, farms, factories, offices, laboratories, supermarkets fields etc.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles

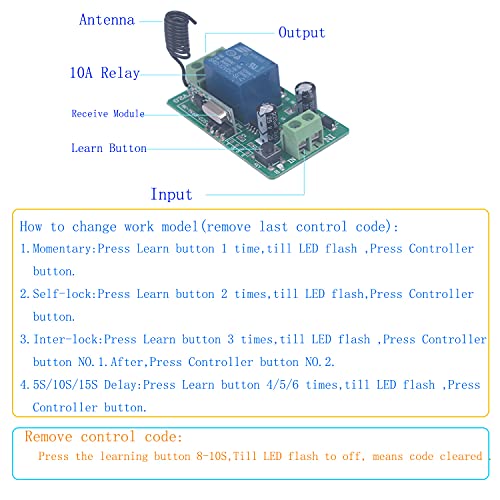

Descriptions: Toggle: pin1+pin 2 Momentary:pin2+pin3 Latched: pin3 Remote Switch: Transmitter Channel:1CH Remote Control Distance: 50 meter(open) in theory, 10%-50% in reality(In open environment,receiver antenna outside the box) Encode: Fixed code, soldering Operating Frequency: 433MHZ Reciever Channel:1CH Decode: Fixed code, soldering Power Supply (Operating Voltage): DC 12V Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC Work Voltage Range of Relay: AC 110-240V or DC 0-28V Sensitivity: -105 dBm Operating Temperature: -40'C~+80'C Working way: Toggle/Self-Lock: Press->On; Press again->Off Press one button for one time is working/ON. Press the same button again is stop/OFF.(1 channel switch(receiver) need 1 button remote control (transmitter). Latched/Inter-Lock: Press->On; Press other button->Off Press one button is working/ON, press another button is stop/OFF. (1 channel switch( receiver) need 2 buttons remote control (transmitter). Momentary/Jog: Press and hold->On; Release->Off Keep pressing one button is working /ON. Loosen your finger is stop/OFF. (1 channel switch(receiver) need 1 button remote control (transmitter). Learn code and Remove Code 1. Learn: Press the learning code, the indicator from on to off, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it mean you learn it successfully . 2. Remove: Press the learning button about 8 seconds, the indicator turn on to off, it means the Code had been removed successfully. Package: 1/2 x Remoter control transmitter( CR 2016 button cell battery Includes ) 1/2/3/4 x receiver 1X Manual
