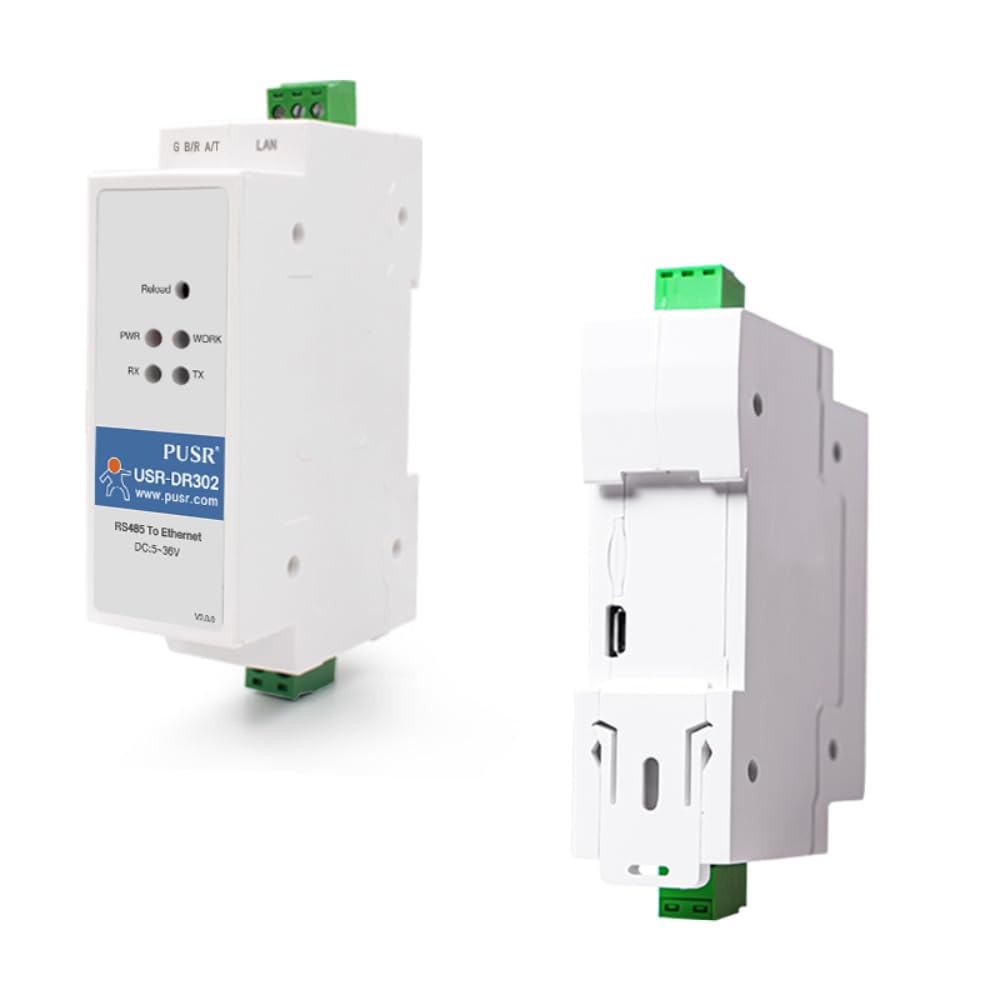

USR-DR302 DIN-Rail Modbus RS485 Serial Port to Ethernet Converter Bidirectional Transparent Transmission Between RS485 and RJ45
Disponibilidad
En stock
En stock
Peso con empaque
0.31 kg
0.31 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- USR-DR302 Modbus RS485 to Ethernet converter can realize bidirectional transparent transmission between RS485 and Ethernet. Via web-page or software, rs485 to Ethernet Converter can realize serial data and TCP/IP data package transparent transmission.
- Realize bidirectional transparent transmission between RS485 and Ethernet
- DIN-rail mounting: Small size, easy to manage and maintain, cost-effective
- Identity Heartbeat Packet: When 302 works as TCP Client, it can send identity packet packet to TCP server which can be identification.Identity packet can be IMEI code, ICCID code and user editable identity packet
- Advanced protection: Level 4 anti-static,level 3 electrical pulse protection, level 2 surge protection
$109,23
55% OFF
$49,65
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$109,23
55% OFF
$49,65
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Features: RS485 port, industrial grade Modbus RTU to Modbus TCP Virtual Serial Software: Solve PC software problem because a serial port cannot communicate with the peripheral network. Network Heartbeat Packet: The serial server maintains the normal connection to the server by sending a heartbeat packet regularly. PC + ABSC material, portable, low cost, flame retardant V0, ensures product safety. Operating mode TCP Client The USR-DR302 Serial to Ethernet Converter will initiate TCP connection to the user-configured destination IP address and the serial to Ethernet converter will continuously try to reconnect if TCP connection fails. TCP Server The USR-DR302 Serial to Ethernet Converter monitors the defined port and waits for a TCP client connection. Data from the serial device will be transmitted to all those who are successfully connected via a serial to Ethernet converter. UDP Client The USR-DR302 communicates only with the target interface of the target IP address, ensuring the accuracy of data transmission. DR302 can transmit the data automatically to the last transferred device after receiving the data, which is suitable for multi-network devices that need to communicate with the DR301. HTTP Client DR302 supports the function of serial data transmission to the specified server in the form of HTTPD (GET/POST). Application Power Data Network Transmission Small size which is available for narrow space; DIN rail mounting, easy to install on the wall; Terminal data of distribution box can quickly be converted into network data, real-time communication, reduce costs efficiently.
