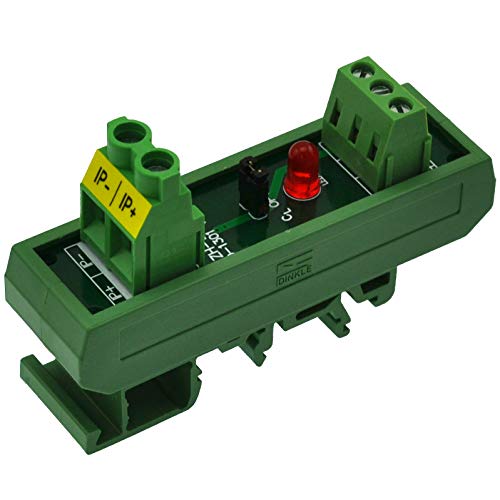

Slim DIN Rail Mount AC/DC Current Sensor Module, Based on ACS712. (+/-20Amp)

Style:

+/-20Amp

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

The item disign based on ACS712 IC. The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.

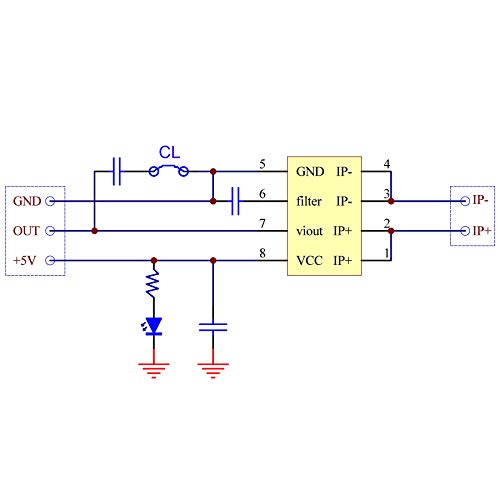

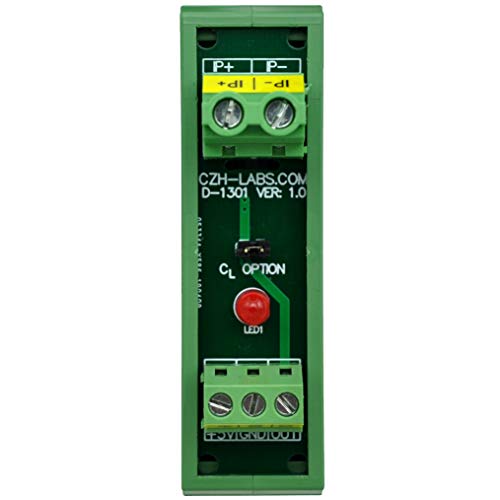

Operating Voltage: Regulated 5VDC. Operating Current: 20mA(max). Load Maximum Current: +/-5Amp, +/-20Amp and +/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Output voltage proportional to AC or DC currents. LED indicator for power supply +5V. Pin jumper option for signal output capacitor.
Load terminal block: Pitch 7.62mm/0.3", Strip length 8mm, Screws - M3, steel, Cr3+ Zn plated, Pin header and Cage – Brass, Wire range 26AWG ~ 10AWG / 4mm square, Rated voltage 300V, rated current 30Amp. Power supply and signal terminal block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated, pin header and cage – brass, Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp.

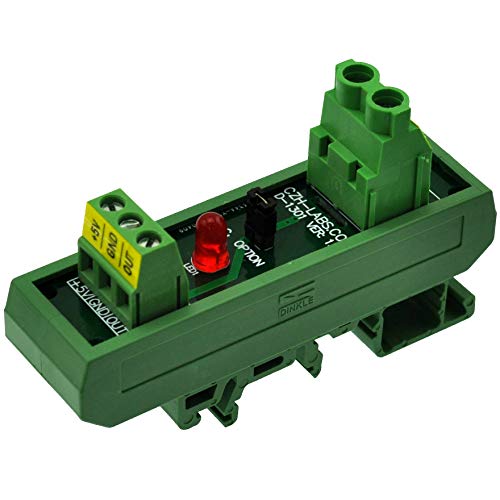

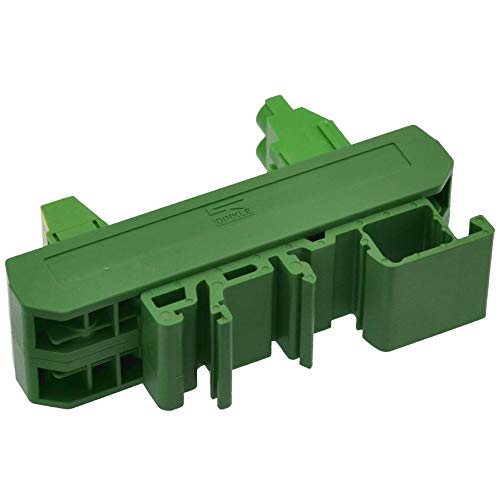

High quality Taiwan DINKLE Fireproof nylon material Slim DIN rail mount carrier, can support width 35 / 32 / 15mm rails.
Datasheet: https://images-na.ssl-images-amazon.com/images/I/81eoq2TsgJL.pdf
