Artículo: AMZ-B00P5W1JLM

Wyph

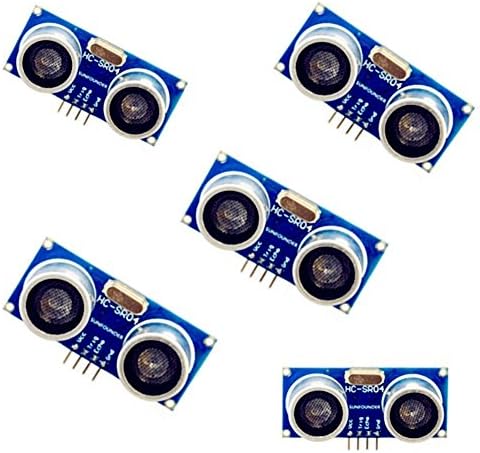

WYPH Ultrasonic Module HC-SR04 Distance Measuring Ranging Sensor for Arduino UNO for Mega R3 Duemilanove Nano Robot Pack of 10pcs

Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
Condición
Nuevo
Producto de
Amazon

Sobre este producto
  • Using IO trigger for at least 10us high level signal
  • The module automatically sends eight 40 kHz and detect whether there is a pulse signal back
  • If the signal back, through high level ,time of high output IO duration is the time from sending ultrasonic to returning. Test distance = (high level time velocity of sound (340M/S) /2
  • Power supply :5V DC, quiescent current : <2mA,effectualangle: <15 ranging distance : 2cm~500 cm resolution : 0.3 cm
  • Package Content: 10pcs HC-SR04
$44,39
49% OFF
$22,77

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$44,39
49% OFF
$22,77

Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium

Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

There are 4 pins out of the module: VCC , Trig, Echo, GND. So it's a very easy interface for controller to use it ranging. The all process is: pull the Trig pin to high level for more than 10us impulse, the module start ranging; Finish ranging, If you find an object in front, Echo pin will be high level, and based on the different distance, it will take the different duration of high level. So we can calculated the distance easily: Distance = ((Duration of high level)*(Sonic :340m/s))/2
