SKU/Artículo: AMZ-B0DQ7NHGH8

waveshare

waveshare Pre-Soldered Raspberry Pi Pico 2 W Microcontroller Board with Header,Supports WiFi 4 Wireless and Bluetooth 5.2,Based On RP2350 Dual-Core Processor

Detalles del producto

Disponibilidad:
En stock

Peso con empaque:
0.30 kg

Devolución:
Sí

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

Overview Raspberry Pi Pico 2 WRP2350, Micro USB Raspberry Pi Pico 2 W RP2350, Micro USB Introduction Raspberry Pi Pico 2 W is an official Raspberry Pi-designed, low-cost yet flexible development platform based on the RP2350, which is a wireless upgrade of the Raspberry Pi Pico 2. It features all the characteristics of the Pico2 with the addition of a 2.4GHz wireless interface. Features RP2350 microcontroller chip designed by Raspberry Pi Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz Built-in 520KB of SRAM and 4MB of on-chip Flash Supports Wi-Fi 4 wireless network and Bluetooth 5.2 Castellated module allows soldering directly to carrier boards USB1.1 host and device support Supports low-power sleep and hibernation modes Drag-and-drop downloads can be made by USB recognition as mass storage 26 × multi-functional GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Temperature sensor Accelerated floating-point libraries on-chip 12 × Programmable I/O (PIO) state machines for custom peripheral support Package Content Raspberry Pi Pico 2 W with pre-soldered header (mono) x1 1*3PIN yellow pin header x1 USB-A to micro USB cable ~1.2m x1 Note Technical Support is provided, please contact with us first if you have any problem .

S/ 101.67

44% OFF

S/ 56.49

S/ 101.67

44% OFF

S/ 56.49

Llega en 5 a 10 días hábiles

con envío

Tienes garantía de entrega

Medios de pago

Cantidad

Medios de pago

Conoce más detalles

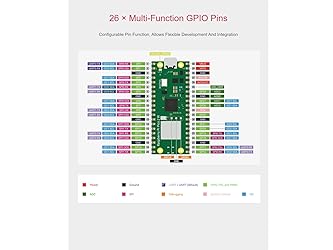

Raspberry Pi Pico 2 W with Pre-soldered Header ,The next big tiny thing,Built Using RP2350 Microcontroller Chip Designed By Raspberry Pi C/C++, MicroPython Support,Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started Dual-Core, Dual-Architecture,The Unique Dual-Core, Dual-Architecture Capability Of RP2350 Allows Users To Choose Between A Pair Of Industry-Standard Arm Cortex-M33 Cores, And A Pair Of Open-Hardware Hazard3 Cores, Giving Developers A Chance To Experiment With The RISC-V Architecture In A Stable, Well-Supported Environment WIFI And Bluetooth Support,Onboard Infineon CYW43439 Wireless Chip, Supports WIFI 4 Wireless And Bluetooth 5.2 26 × Multi-Function GPIO Pins,Configurable Pin Function, Allows Flexible Development And Integration

waveshare Pre-Soldered Raspberry Pi Pico 2 W Microcontroller Board with Header,Supports WiFi 4 Wireless and Bluetooth 5.2,Based On RP2350 Dual-Core Processor
