SKU/Artículo: AMZ-B0D3F9J4RX
UeeKKoo

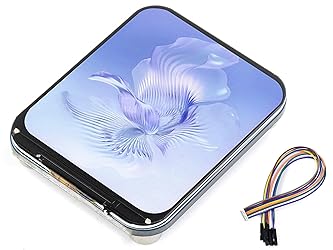

1.83inch Round LCD Display Module 240×280 Resolution IPS LCD SPI Interface 65K Colors Rounded Corners Micro LCD Display for Raspberry Pi 5/4B/ 3B+/Pi3B/Raspberry Pi Zero W/2W, STM32,ESP32 etc.
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.30 kg
0.30 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- 1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display. Embedded NV3030B driver chip, Using SPI Interface Features 240×280 resolution, 65K colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, compatible with Raspberry Pi/withArduino/with STM32/with ESP32,etc. Comes with Online Development Resources (examples for Raspberry Pi/forArduino/forSTM32/forESP32, etc.): bit.ly/44Lm7At Specifications Operating voltage--3.3V / 5V Resolution --240 × 280 pixels DISPLAY PANEL--IPS Driver --NV3030B Communication Interface--4-wire SPI Display size--30.20 × 35.23mm PIXEL SIZE--0.126 × 0.126mm Module size--33.00 × 40.00mm LCD and the controller This LCD utilizes an internal controller, the NV3030B, which is a 240 x RGB x 320 pixel LCD controller. However, the LCD itself has a resolution of 240 (H) RGB x 280 (V) pixels. Additionally, since the initialization control allows for both landscape and portrait orientations, not all of the LCD's internal RAM is fully utilized. The LCD supports three color formats for input per pixel: 8-bit, 9-bit, 16-bit, and 18-bit. These formats include RGB444, RGB565, and RGB666. This example program uses the RGB565 color format, which is commonly used. Communication with the LCD is achieved via a four-wire SPI interface. This approach significantly reduces the GPIO usage and also ensures relatively fast communication speed. Package Content 1.83inch LCD Module x1 GH1.25 8--PIN cable ~20cm x1
S/ 133.61
60% OFF
S/ 53.44
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
S/ 133.61
60% OFF
S/ 53.44
Hasta 6 cuotas sin intereses con BCP, BBVA y Diners
Llega en 5 a 10 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
1.83inch LCD Display Module, 240×280 Resolution, 65K colors, clear and colorful displaying effect Embedded NV3030B driver chip, Using SPI Interface SPI interface, minimizes required IO pins, compatible with Raspberry Pi/withArduino/with STM32/with ESP32,etc. 3.3V / 5V Operating Voltage, IPS Display Panel Comes with Online Development Resources (examples for Raspberry Pi/ forArduino/ forSTM32/ forESP32, etc.)
