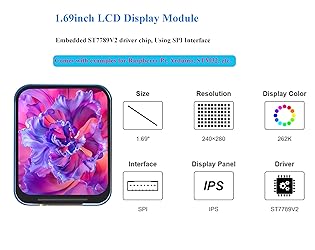

waveshare 1.69inch LCD Display Module, 240x280 IPS Screen, 262K RGB Display Colors, SPI Interface,Embedded ST7789V2 Driver chip, Using SPI Interface, Compatible with Arduino,Raspberry Pi, STM32, etc.
Color:
1.69inch
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.30 kg
0.30 kg
Devolución:
Sí
Sí
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- 1.69inch LCD Display Module, IPS Screen, Embedded ST7789V2 driver chip, Using SPI Interface. Features 240×280 resolution, 262K colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32 Comes with online development resources (examples for Raspberry Pi/Arduino/STM32) Specifications Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are the same, otherwise it will not work properly.) Communication interface: SPI Display Panel: IPS Control chip: ST7789V2 Resolution: 240 (H)RGB × 280(V) Display size: 27.972mm × 32.634mm Display R angle: 4-R5 (mm) Pixel pitch: 0.11655mm × 0.11655mm Dimensions: 31.5mm × 39.0mm Module & Control Chip The embedded controller used in this module is ST7789V2, an LCD controller with 240 × RGB × 320 pixels, and the pixels of the LCD itself is 240(H) × RGB × 280(V), so the internal RAM of the LCD is not fully used. This LCD supports input color formats of 12-bit, 16-bit, and 18-bit per pixel, which are RGB444, RGB565, and RGB666. This demo example uses the RGB565 color format, which is also a commonly used RGB format. The LCD uses a four-wire SPI communication interface, which greatly saves GPIO ports with faster communication speeds. The resolution of this module is 240 (H) x RGB x 280 (V), but due to the four round corners (see specifications for dimensions), some parts of the input images may not be displayed. Online Tutorial/Online Document: n9.cl/zjkfp Package Content 1.69inch LCD Module x1 GH1.25 20cm cable x1
S/ 91.17
44% OFF
S/ 50.65
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
S/ 91.17
44% OFF
S/ 50.65
Hasta 6 cuotas sin intereses con BCP, BBVA y Diners
Llega en 5 a 10 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
1.69inch LCD Display Module, 240×280 resolution, 262K display colors, clear and colorful displaying effect. SPI interface, minimizes required IO pins, Compatible with Arduino/Raspberry Pi/STM32,etc. Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are the same, otherwise it will not work properly.) Embedded ST7789V2 driver chip, 31.50 × 39.00mm module size. Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
