SKU/Artículo: AMZ-B0B3MF1W23
UNIVERSAL-SOLDER Electronics

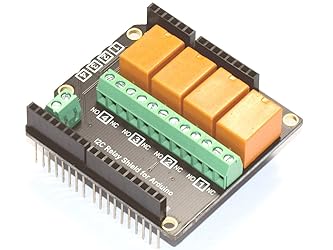

CANADUINO® 4-Channel Stackable I2C Relay Shield for Arduino - DIY Soldering Kit - Made in Canada (USMCA Complaint = no tariffs for US customers)
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.30 kg
0.30 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- CANADUINO Stackable Relay Shield for Arduino is available a pre-assembled DIY soldering kit. All SMD parts already assembled, TH parts need to be assembled by you (relays, connectors). CANADUINO Stackable Relay Shield for Arduino communicates with any compatible 3.3V and 5V Arduino module through its I2C interface and only requires the two I2C signals to address up to 64 relays. CANADUINO Stackable Relay Shield for Arduino can switch loads up to 3A @ 250VAC per relay output. The relays have normally open (NO) and normally closed (NC) contacts to drive loads up to 750VA or larger contactors for even higher switching capacities. The relay modules are powered by the 5V line available on every 5V Arduino module (e.g. UNO, MEGA, Leonardo), or by an external 5V source connected to the screw terminal if it is a 3.3V Arduino module (e.g. ZERO, DUE). We include a set of short and long Nylon spacers (M3) that can easily be modified (cut) to fit. Unfortunately, the design flaws of Arduino UNO and MEGA boards make it impossible to use “stock” spacers in all four corners. We designed a library for Arduino which makes it very easy to address every single relay in a stack of up to 8 modules (max. 64 relays when 8-relay modules are used). The library is an installable ZIP file for the Arduino IDE and includes two demo sketches to show its function. Download CANADUINO I2C Relay Library (incl. example code) for Arduino from CANADUINO website. This is a DIY Soldering Kit! Included parts: – Relay Module PCB with SMD parts already assembled – 4 x Short standoffs M3 (Nylon) – 4 x Long standoffs M3 (Nylon) – 4 x Nut M3 (Nylon) Note: The PCB has an error in the silkscreen print. The polarity of the 5V screw terminals is wrong. We put a sticker on the PCBs to correct the mistake - make sure you don't peel it off.
S/ 200.79
55% OFF
S/ 91.27
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
S/ 200.79
55% OFF
S/ 91.27
Hasta 6 cuotas sin intereses con BCP, BBVA y Diners
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
4-Channel Relay Shield for Arduino - Pre-Assembled DIY Soldering Kit I2C Interface Requires only 2 Signals, GND and Power 8 different addresses selectable to address a maximum of 8 modules with 4 or 8 relays = 64 relays total Selectable logic level 3.3V or 5V MADE IN CANADA (CUSMA compliant = no tariffs for US customers)
