SKU/Artículo: AMZ-B081M986TR
waveshare

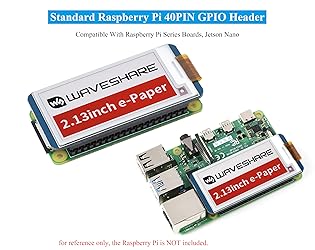

waveshare 2.13inch E-Ink Display HAT for Raspberry Pi 5/4B/3B+/3B/2B/Zero/Zero W/WH and Jetson Nano, 250×122 Pixel White Black Red Three-Color SPI Interface No Backlight
Detalles del producto
Disponibilidad:
En stock
En stock
Peso con empaque:
0.30 kg
0.30 kg
Devolución:
No
No
Condición
Nuevo
Nuevo
Producto de:
Amazon
Amazon
Viaja desde
USA
USA
Sobre este producto
- Overview 2.13inch E-Paper HAT (B), 250x122, Red/Black/White, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard RPi 40PIN GPIO extension header, Compatble with Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with other controller boards like Ar-dui-no/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for RPi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V Interface: 3-wire SPI, 4-wire SPI Outline dimension: 65mm × 30.2mm Display size: 23.71mm × 48.55mm Dot pitch: 0.229 × 0.228 Resolution: 250x122 Display color: red, black, white Grey level: 2 Full refresh time: 15s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Precautions 1.For E-paper displays that support partial refresh, please note that you cannot refresh them with the partial refresh mode all the time. After refreshing partially several times, you need to fully refresh EPD once. Otherwise, the display effect will be abnormal, which cannot be repaired! More Precautions or How-to-use document/User Manual:// bit.ly/3mrYMS6 Package Content 2.13inch e-Paper HAT (B) x1 RPi screws pack (2pcs) x1 PH2.0 20cm cable x1
S/ 135.03
49% OFF
S/ 69.25
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
S/ 135.03
49% OFF
S/ 69.25
Hasta 6 cuotas sin intereses con BCP, BBVA y Diners
Llega en 15 a 25 días hábiles
con envío
Tienes garantía de entrega
Conoce más detalles
This is 2.13inch E-Paper HAT (B) E-Ink display HAT, 250x122 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Standard RPi 40PIN GPIO extension header,Compatble with Raspberry Pi series boards, Jetson Nano. Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Operating voltage: 3.3V/5V. Interface: 3-wire SPI, 4-wire SPI. Outline dimension: 65mm × 30.2mm. Display size: 23.71mm × 48.55mm. Dot pitch: 0.229 × 0.228. Display color: red, black, white. Grey level: 2. Full refresh time: 15s. Refresh power: 26.4mW(typ.). Standby power: <0.017mW. Viewing angle: >170°.
