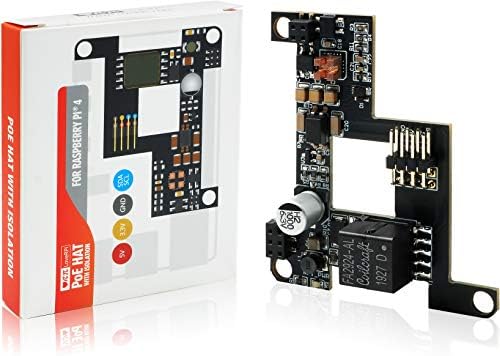

LoveRPi Power-Over-Ethernet (PoE) HAT for Raspberry Pi 4 Model B and Raspberry Pi 3 Model B+ (Professional, Isolated (3KV))

Detalles del producto

Disponibilidad:
Fuera de stock

Peso con empaque:
0.30 kg

Devolución:
No

Condición
Nuevo

Producto de:
Amazon

Viaja desde
USA

Sobre este producto

ULTIMATE POWER OVER ETHERNET HAT FOR RASPBERRY PI 4: Deliver clean and reliable power to the latest Pi 4! Power-over-Ethernet is both simple, power efficient, and cost effective compared to having multiple power adapters. PoE power output must be within the budget of the switch when powering multiple boards. PoE switch and Raspberry Pi 4 Model B sold separately.
GALVANICALLY ISOLATED POWER OVER ETHERNET UP TO 3KV: Designed for IEEE 802.3af, IEEE 802.3at, and Passive DC 48V network switches and power sourcing equipment (PSE). The professional model features galvanic isolation for applications with non-IEEE 802.3 compliant switches and power injectors that do not provide PSE side isolation.
BUILT FOR CLUSTER NODES: Simplify cable management and expand your on-premise cloud with POE! Power five, ten, twenty Raspberry Pi 4 Model B boards through a single POE switch. This PoE HAT was designed to exceed the power delivery standards set by the official Raspberry Pi PoE HAT and other products available on the market.
VENTILATED CASE WITH COOLING FAN HIGHLY RECOMMENDED: Do not use this product in an enclosed case without active air circulation. Airflow around the HAT and Raspberry Pi 4 Model B must be adequate to ensure performance and stable operation.
EASY INSTALLATION AND BACKWARDS COMPATIBLE: Please remove all non-essential heatsinks including RAM/USB/Ethernet heatsink before seating the HAT! Supports the latest Raspberry Pi 4 as well as the Raspberry Pi 3 Model B+.

Fuera de stock

Selecciona otra opción o busca otro producto.

Medios de pago

Conoce más detalles

Input: IEEE 802.3af Compliant PoE or DC 48V PoE with up to 3KV IsolationOutput: 5V +-5% up to 2.5A*Protection Circuitry: Transient Overvoltage, Undervoltage Lockout, Thermal Shutdown, Foldback Current Limiting* Active airflow and adequate cooling required for stable continuous operation at high load.
