waveshare 1.3inch OLED Display HAT for Jetson Nano and Raspberry Pi 3B+/3B/2B/Zero/Zero W/Zero WH,128x64 Pixels Screen,with Embedded Controller, Communicating via SPI or I2C Interface
Color:
1.3inch OLED Display HAT
En stock
0.49 kg
Sí
Nuevo
Amazon
USA

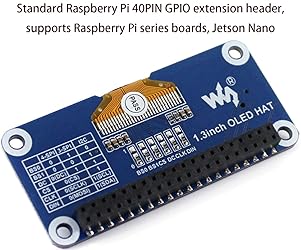

- Overview This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice. Features Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W/Zero WH, Jetson Nano Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor 1x joystick (5-position), 3x pushbuttons, handy and useful Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Driver: SH1106 Interface: 4-wire SPI, 3-wire SPI, I2C Display color: blue Resolution: 128x64 Operating voltage: 3.3V Package Content 1.3inch OLED HAT x1 RPi screws pack (2pcs) x1
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
1.3inch OLED display HAT for Raspberry Pi, 128x64 pixels,with embedded controller, communicating via SPI or I2C interface. Compatible with Jetson Nano, and Raspberry Pi 2B/3B/3B+/Zero/Zero W/Zero WH. Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor 1x joystick (5-position), 3x pushbuttons, handy and useful. Driver: SH1106 Interface: 4-wire SPI, 3-wire SPI, I2C Display color: blue Resolution: 128x64 Operating voltage: 3.3V
