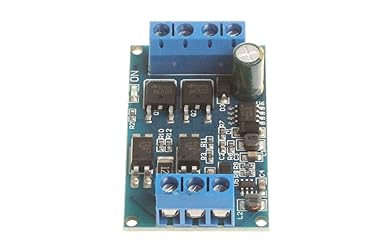

NOYITO 10A 600W High Power MOS Trigger Switch Driver Module PWM Conditioning Electronic Switch Control Board FET MOS Trigger Switch Driver Module

Conoce más detalles

The module supports high level trigger, low level trigger, switch control, PWM control; dual MOS parallel active output, low internal resistance, strong current, strong power, continuous current at room temperature is 10A, 600W, satisfying most Equipment; Working voltage input: DC 4V-60V; Easy to control high power equipment. (Please refer to the second picture on the left for the wiring diagram) High-level trigger voltage range: DC3.0V-24V, trigger signal is 3.0V-24V, MOS tube is on; less than 0.6V, ie 0V-0.6V, MOS tube is off. The signal voltage cannot be 0.6V-3.0V, because the MOS tube is not fully open, the high power output will damage the MOS; Low-level trigger voltage range: DC 0V-0.6V, trigger signal at 0V-0.6V, MOS transistor is on; above 3.0V, MOS transistor is off; signal voltage cannot be 0.6V-3.0V, because MOS tube is not complete Open circuit, high power output will damage MOS. Output Capacity: DC 4V - 60V, continuous current 10A, room temperature, power 600W! The current can reach 15A under auxiliary cooling conditions.
