Artículo: AMZ-B0G56XXN2T

Gticgrshp

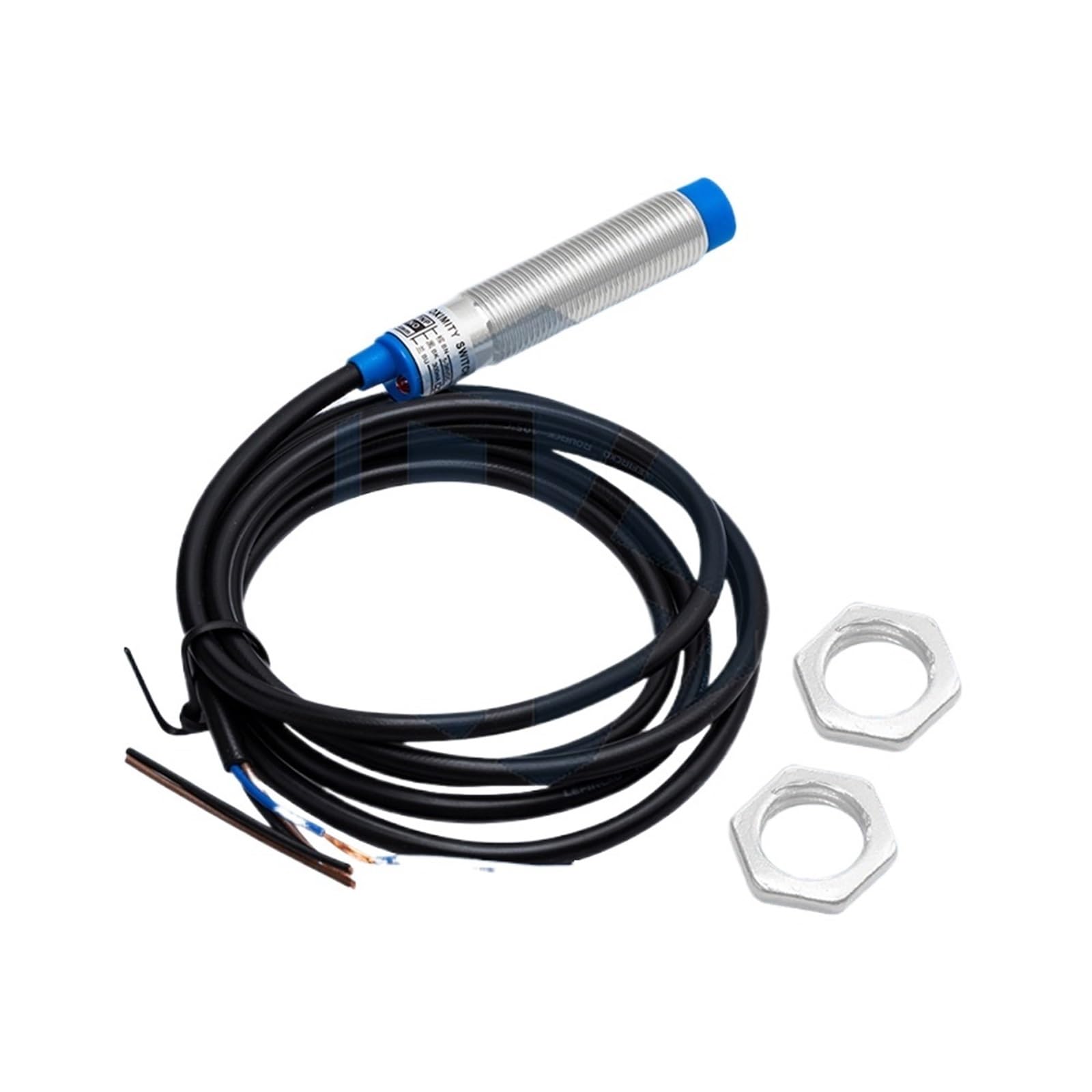

Proximity Switch inductive Sensor Detection NPN/PNP NO NC 2-4mm Distance Gold M12(DC3 Wire NPN(NO) 4mm)

Color:

DC3 Wire NPN(NO)4mm

Disponibilidad
En stock
Peso con empaque
0.20 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon

Sobre este producto
  • Proximity Sensors
  • Proximity switch inductive sensor detection NPN/PNP NO NC 2-4mm distance gold M12
$170,04
49% OFF
$87,20

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$170,04
49% OFF
$87,20

Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium

Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Proximity SensorsProximity Switch Inductive Proximity Sensor Detection Switch NPN/PNP NO NC 2-4mm Detection Distance Metal Sensor SwitchesSPECIFICATIONProduct Name: Inductive Proximity Sensor SwitchOutput Type: DC Type NPN, NONPN, NCNPN N0+NCPNP, NOPNP, NCPNP N0+NC2-Wire,NO2-Wire,NCAC Type 2-Wire,NO2-Wire,NC2-Wire,NO+NCNO: When an item is near, the light turns onNC: When an item is near, the light turns offDetection Distance: 2mm, 4mmSet distance: 0~3.6mmMale Thread Size: M12Mounting Type: Screen ShieldedNon-Screen ShieldedSupply Voltage: DC Type: 6~36VDCAC Type: 90~250VAC, 50/60HzCurrent: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2AResponse frequency: DC:0.5kHzSupply voltage: DC type:DC12V DC24V DC36V(5~36V)impulse(p-p)10% belowWithstand voltage: AC1000V 50/60Hz 1min between charging part and housingDetection Object: Magnetic Metals(if it is not magnetic metals, the detection distance will decrease)Response Frequency: DC Type: 500HzAC Type: 25HzOutput Indication: Red LEDIP Rating:IP67Operating Temp: -25 to 70 °CTotal Length (Included Wire): About 1.2mMateriala: Case: Brass-Nickel PlatedSensing Surface: ABSProtection influence: IP67(IEC specification)This product can be applied to control relays, counters, etc.!Package Included: 1PC Proximity Switch==========Current : 300 mAMaterial : CopperSwitch Type : Proximity SwitchModel Number : LJ12A3-4-Z/BXFeatures : Brass shell nickel-plated, waterproof and dustproof 2-4mm detection diItem Type : SWITCHESShell material : Nickel Plated Brass
