Artículo: AMZ-B0G4S9RFQ7

Luocute

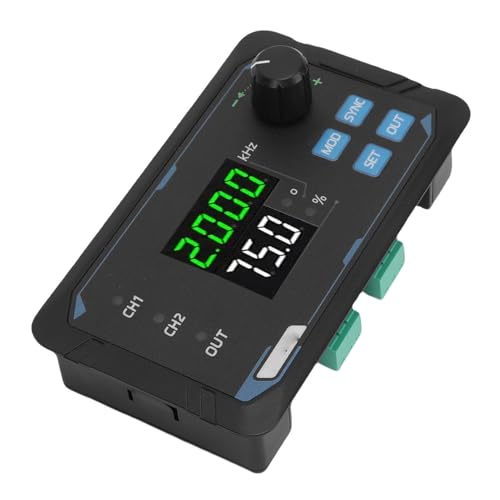

Dual Channel PWM Signal Generator, 1Hz to 150kHz Adjustable Frequency 0.1 Percent Duty Cycle Step 360 Degree Phase with Short Circuit Protecting and Soft Starts for Motor

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Sobre este producto

OUTPUT PARAMETERS: PWM signal generator output frequency 1Hz - 150kHz (default 10kHz), step adjustment, 1Hz - 10kHz (accuracy 0.2%o), 10kHz - 50kHz (accuracy 0.4%o), 50kHz - 150kHz (accuracy 2%o) Duty cycle 0.1% step fine tuning, phase adjustment 0° to 360° (step 1°); The maximum output current is 0.2A
DUAL SCREEN DYNAMIC DISPLAY: The dual channel signal generator supports 4 bit green digital tubes (frequency) + 3 bit white digital tubes (duty cycle or phase), synchronously displaying parameters in real time, with a refresh rate of 120Hz. Independent control and support phase linkage
PRESET PARAMETERS: The dual channel PWM signal generator system supports the storage of 10 sets of preset data, which can adapt to various motor model more quickly and efficiently for convenient use next time
SHORT CIRCUIT PROTECTING: Under the condition of low voltage, the motor driver speed controller can achieve the short circuit protecting function at the output terminal within 60 seconds
INTELLIGENT HUMAN COMPUTER INTERACTION: The PWM signal generator adopts a rotating encoder (with keys) and four function keys (MOD/SYNC/SET/OUT), supporting multi channel switching and synchronization mode

$56,00

49% OFF

$28,72

$56,00

49% OFF

$28,72

Envío gratis

Llega en 26 o más días hábiles

Tienes garantia de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Información de Aduanas

para tu compra

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Conoce más detalles

1. OUTPUT PARAMETERS: PWM signal generator output frequency 1Hz - 150kHz (default 10kHz), step adjustment, 1Hz - 10kHz (accuracy 0.2%o), 10kHz - 50kHz (accuracy 0.4%o), 50kHz - 150kHz (accuracy 2%o) Duty cycle 0.1% step fine tuning, phase adjustment 0° to 360° (step 1°); The maximum output current is 0.2A 2. DUAL SCREEN DYNAMIC DISPLAY: The dual channel signal generator supports 4 bit green digital tubes (frequency) + 3 bit white digital tubes (duty cycle or phase), synchronously displaying parameters in real time, with a refresh rate of 120Hz. Independent control and support phase linkage 3. PRESET PARAMETERS: The dual channel PWM signal generator system supports the storage of 10 sets of preset data, which can adapt to various motor model more quickly and efficiently for convenient use next time 4. SHORT CIRCUIT PROTECTING: Under the condition of low voltage, the motor driver speed controller can achieve the short circuit protecting function at the output terminal within 60 seconds 5. INTELLIGENT HUMAN COMPUTER INTERACTION: The PWM signal generator adopts a rotating encoder (with keys) and four function keys (MOD/SYNC/SET/OUT), supporting multi channel switching and synchronization mode Spec: Item Type: PWM Signal Generator Model: PWM150B Material: ABS Output Frequency: 1Hz-150kHz (default 10kHz), stepped adjustment Duty Cycle Accuracy: 0%-100 percent, stepped adjustment 0.1% (default 50%) Rise Time: 200ns Phase Adjustment: 0°-360° (1° stepped, synchronous mode available) Maximum Output Current: 0.2A Display System: 4 Digit green and 3 digit white LED display Power Supply: External Power Supply Display System: Upper Screen (green): Real time display of frequency value (e.g. 1.200kHz) Lower Screen (white): Dynamically switch between duty cycle (e.g. 50.0%) or phase (e.g. 090°) Dual screen synchronous display, supports one key switching mode How to Use: Follow the user
