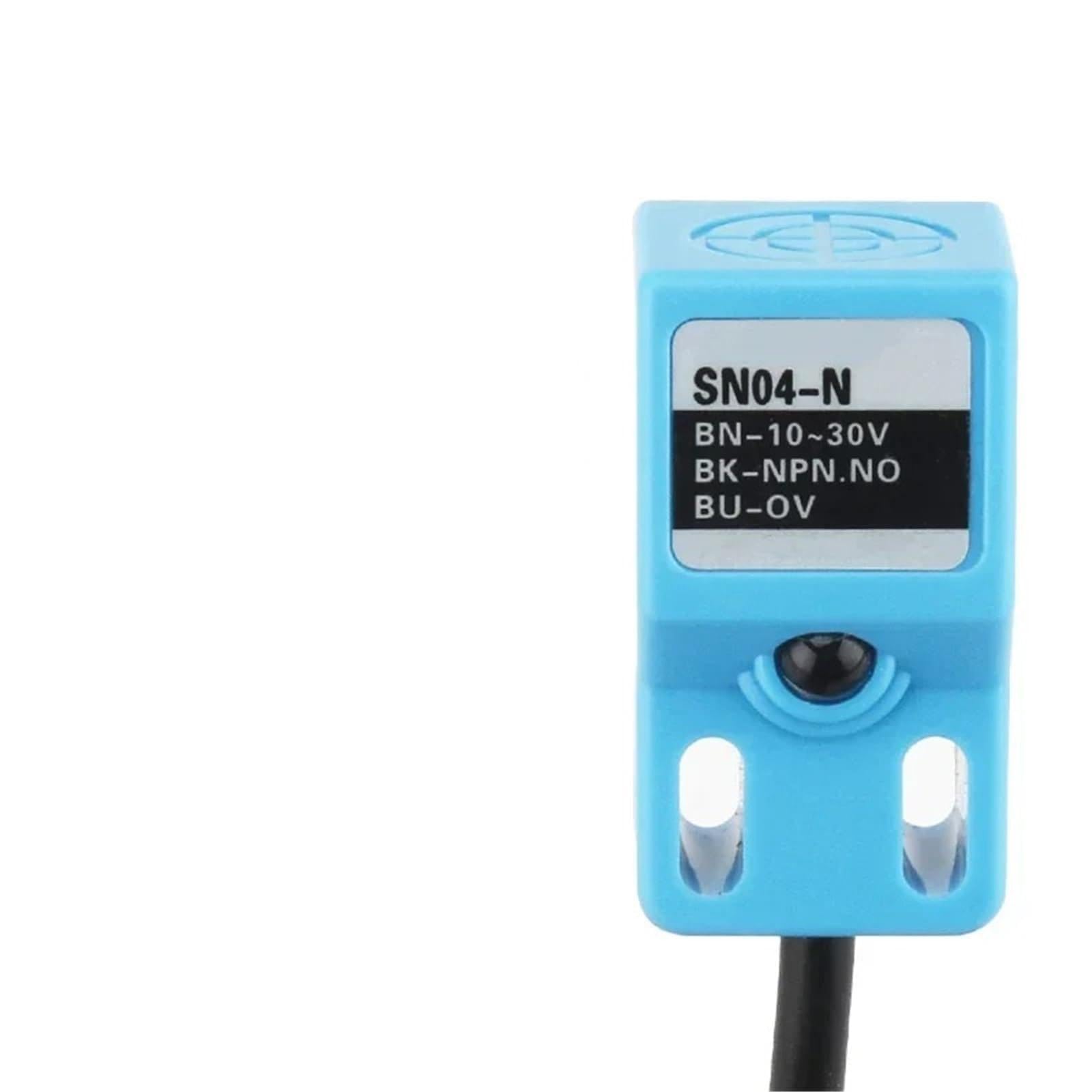

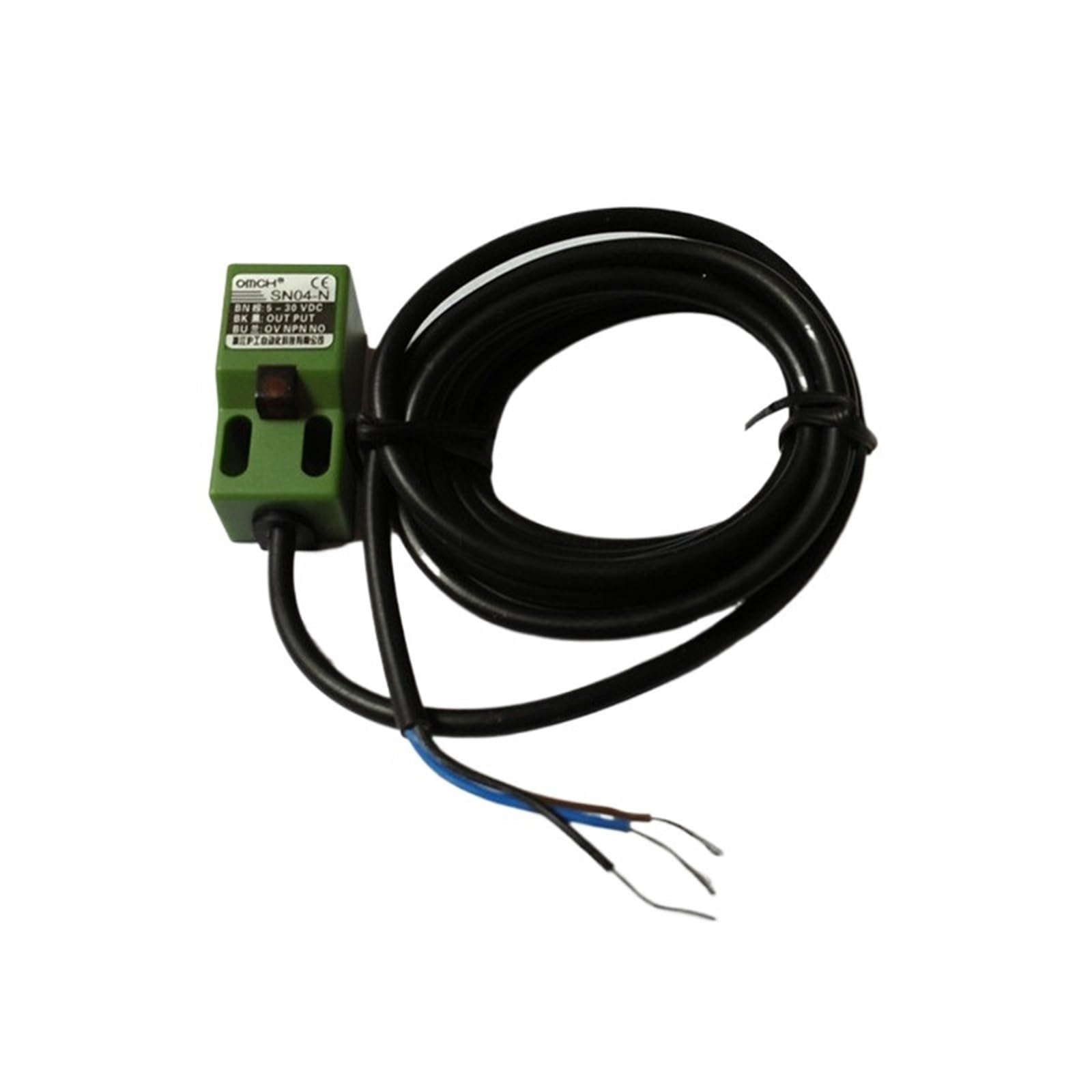

SN04-N SN04-P SN04-N2 SN04-P2 Inductive Proximity Switch Sensor Square Type NPN NO NC PNP NO NC Switches(PNP NO)
Color:
Pnp No
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
No
No
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Photoelectric Sensors
- SN04-N SN04-P SN04-N2 SN04-P2 Inductive Proximity Switch Sensor Square type NPN NO NC PNP NO NC Switches
$114,54
60% OFF
$45,81
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$114,54
60% OFF
$45,81
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Photoelectric SensorsSN04-N SN04-P SN04-N2 SN04-P2 NPN NO, PNP NO, NPN NC, PNP NC Square type Inductive Proximity Switch SensorProduct name: proximity inductive switchSpecificate:Model numberCable LengthSN04 series1.2 meterExternal dimensions18x18x36Installation typeDetect from frontDetection distance5mmStandard detected objectMild steel (18x18x1mm)Response frequencyNPN or PNP: 0.6kHz; Two wires of : 0.5kHz; Two wires of AC: 25HzSensing objectMagnetic metals (if it is not magnetic metals, the sensing distance would decrease)Supply voltage10-30Vdc;Rated output currentN.P Type: 300mA max; D type: 200mA max; AC Type: 400mALeakage currentN.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA maxHysteresis10% max. of sensing distanceProtection circuit-DCReverse connection protection, Surge suppressor, Short-circuit protectionProtection circuit-ACSurge suppressorInsulation resistance50M min (between charging part and housing)Dielectric strength1000Vac, 1min (between charging part and housing)Temperature influence-1±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°CTemperature influence-2±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°CVoltage influence±10% max. of sensing distance in rated voltage range ±15%IP RatingIP67MaterialCase: ABS; Sensing surface: ABSModel:SN04-N: (NPN NO/normally open) 3 wires, detect distance 5mm,SN04-P:(PNP NO/Normally open) 3 wires, detect distance 5mmSN04-N2:(NPN NC/ Normally closed) 3 wires, detect distance 5mmSN04-P2: (PNP NC Normally closed) 3 wires, detect distance 5mm
