Artículo: AMZ-B0FS1N1DLW

Wonrabai

ESP32-S3 Development Board with 3.49inch IPS Touch Display, 172 x 640 Resolution, ESP32-S3R8 Dual-Core Processor, Supports AI Interaction & Offline Voice, Type Case A for Desktop Use (with Battery)

Disponibilidad
En stock
Peso con empaque
0.42 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon

Sobre este producto

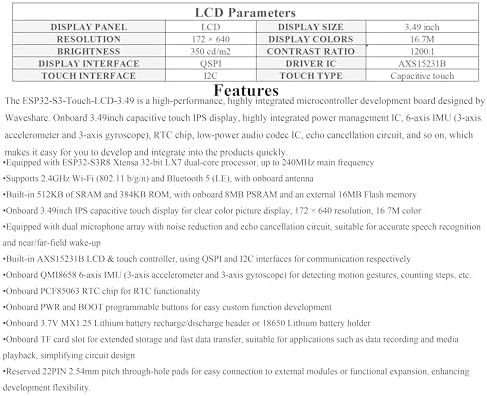

  • Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
  • Onboard 3.49inch IPS capacitive touch display for clear color picture display, 172 × 640 resolution, 16.7M color. Onboard audio codec. Supports high-quality audio processing, providing clear and high-quality audio input and output. Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao, etc.
  • Equipped with dual microphone array with noise reduction and echo cancellation circuit, suitable for accurate speech recognition and near/far-field wake-up. Built-in AXS15231B LCD & touch controller, using QSPI and I2C interfaces for communication respectively. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.

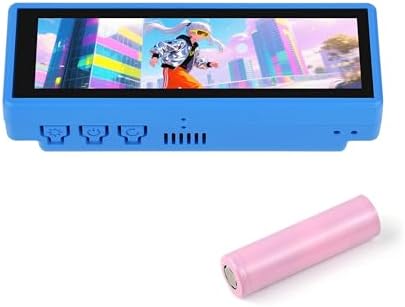

  • Onboard PCF85063 RTC chip for RTC functionality. Onboard PWR and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Lithium battery recharge/discharge header or 18650 Lithium battery holder.
  • Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design. Reserved 22PIN 2.54mm pitch through-hole pads for easy connection to external modules or functional expansion, enhancing development flexibility.
  • Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/y5up9a
$83,18
31% OFF
$57,37

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$83,18
31% OFF
$57,37
Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable
