FNIRSI LC1020E 100kHz LCR Meter, 19,999 Counts Resistor Inductor Capacitor Tester, Auto Component Detect, Measures ESR/Q/D/θ/X, 2.8” Color TFT, Dual Parameter Display, Sorting & Open/Short Calibration

0 5 4 26

26 calificaciones

Disponibilidad
En stock

Peso con empaque
0.74 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

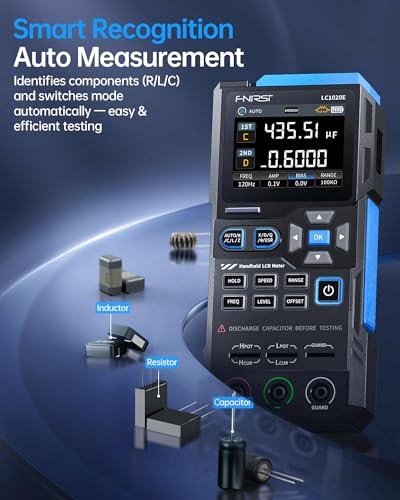

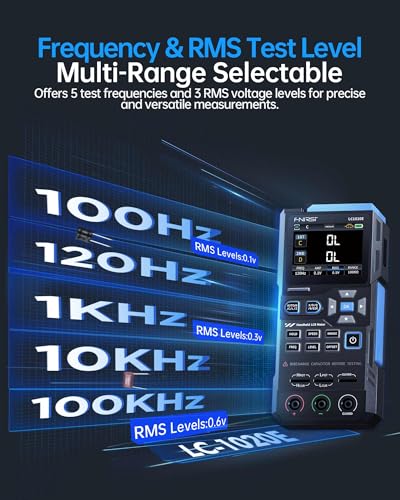

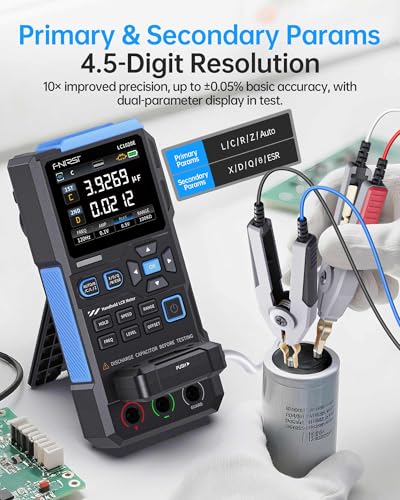

【Dual Parameter】FNIRSI LC1020E LCR Meter supports AUTO, Capacitance, Resistance, and Inductance with main/secondary parameters (X/D/Q/θ/ESR) shown simultaneously. Frequencies: 100Hz/120Hz/1kHz/10kHz/100kHz. 19,999-count display ensures precise readings

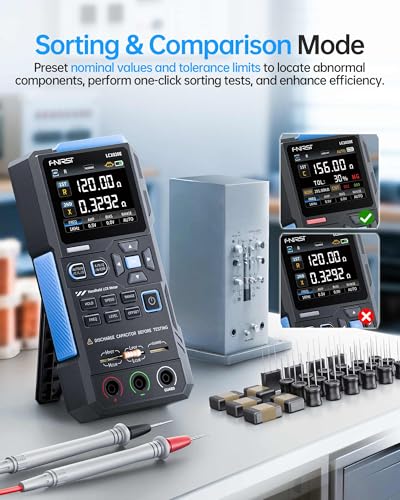

【Smart Sorting】ESR Meter with Sorting & Comparison Mode calculates relative error (%) using preset nominal/tolerance (0.1%–99.9%) for accurate component screening. Alerts via sound/LED. Supports Capacitors 1pF–100mF, Resistors 10mΩ–10MΩ, Inductors 1µH–100H
【Reliable Testing】Capacitance meter supports open/short calibration, adjustable test voltage (0.1/0.3/0.6V) and internal bias (0.0/0.5V). Records if components meet preset nominal/tolerance, tracking success/fail counts. Data hold locks readings. 100Ω output ensures accuracy. Speed: Fast (4/s), Medium (2/s), Slow (1/s)

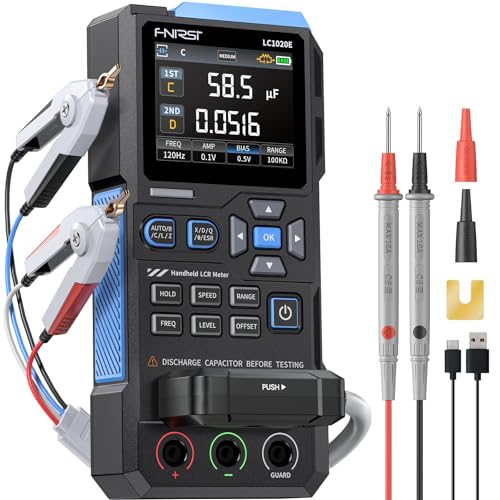

【User-Friendly】ESR meter capacitor tester features 3-pin sockets and 5-slot jacks for precise four-terminal (Kelvin) measurements with professional fixtures. 2.8” TFT display with 10-level brightness. 3000mAh battery with auto-off, Type-C charging/firmware updates
【Note】Perform open/short calibration before measurement. Fully discharge capacitors and inductors. For onboard components, ensure the circuit is powered off. Do not measure live circuits to avoid damage or inaccurate readings

$168,18

31% OFF

$115,99
