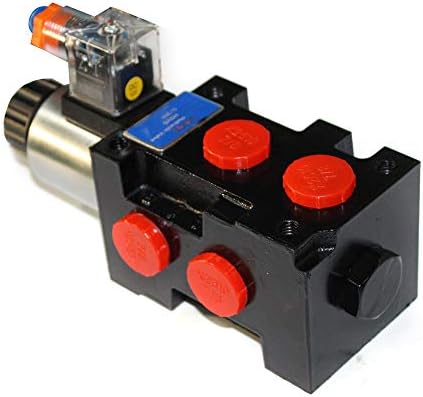

13gpm Hydraulic Solenoid Selector/Diverter Valve,50lpm Max Flow,12v Dc 3-Plug Hydraulic Solenoid Selector,For Switching Oil Circuits Between Different Flow Rates And Pressures.

0 5 5 4

4 calificaciones

Disponibilidad
En stock

Peso con empaque
2.88 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

Product Parameters：Maximum flow: 50LPM; Flow grade: 13 GPM; Nominal pressure: 25MPa (3625 PSI); Voltage: DC12V, 3 plugs. Oil Port: 7/8-14UNF, 6 Ports with #10 SAE.
Main function: It can switch between oil circuits with different flow rates and pressures. Multiple directional valves can be connected to send oil into or out of different devices. It can also be connected to an oil pump to separate hydraulic oil into two different oil circuits.
Advantages of use: Without the need for a large number of additional pipelines or electrical components, it is easy to add extra functionality to existing hydraulic systems.
Applicable: Suitable for double acting or single acting hydraulic cylinders. Note: This product is a flat sealed small gate.
3 Valves: All threaded rods (excluding) can integrate up to 3 valves. No additional shell drainage outlet is required.
Features : 1.Dese not require an additional case drain line. 2. -4 degrees to +158 degrees F working temperature. 3.Works with Double or Single Acting Cylinders. 4.Allows you to easily add an additional function to your existing hydraulic system without a lot of additional plumbing or electrical components. 4.Up to 3 valves can be manifolded together with all thread rod (not included).
Package Content - 1× Hydraulic Solenoid Selector

$228,87

60% OFF

$91,55
