BGD 812-4470 14 Inch Thermocouple Fit for Heatilator Eco-Choice & Quadra-Fire Pellet Stoves Thermocouple Castile, Contour, Mt Vernon, Santa Fe
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto

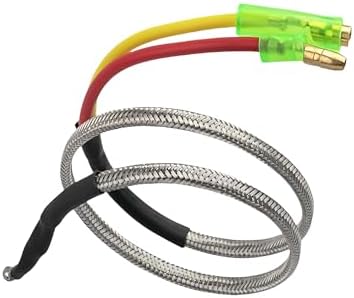

- 812-1322 812-4470 compatible model 812-4470-AMP Pellethead PH-20154 Approximately 14 3/4 inches in length, with green transparent terminals and metal joints, and an outer layer of braided metal sheath
- Applicable equipment: Heatilator Eco Choice PS35, PS50, Cab50, as well as Quadra Fire Castile, Santa Fe, Mt. Vernon and other models of pellet furnaces; Note!!!:This does not fit the Mt. Vernon AE or CB1200, CB1200I
- What are the reasons for repeated wire breakage Metal fatigue: Repeated thermal expansion and contraction of wires under high temperature for a long time, or excessive bending during installation, leading to internal stress accumulation; Bracket damage: The matching thermocouple bracket deformed due to high temperature and was unable to fix the wire, resulting in excessive stress and fracture.
- When the temperature reaches about 300 ° F, a voltage of 2.5-3 mV is generated, and the control box will light up a green light to confirm that the "flame has been established"; When the temperature rises to about 600 ° F, a voltage of 12-13 mV is generated, and the control box switches to a red light, allowing the furnace to enter normal combustion mode (continuous feeding); If the thermocouple breaks or fails, it will not be able to generate voltage, and the furnace will automatically shut down due to "no flame detected" to prevent safety hazards.
- Thermoelectric electrode material: Positive electrode: Nickel chromium alloy/Negative electrode: Nickel silicon alloy Insulation layer material: Magnesium oxide (MgO) powder (filled in stainless steel protective tube) Protective sheath made of 304 stainless steel woven mesh Green transparent insulation sleeve material: polycarbonate (PC) Metal joint material: brass
$71,41
60% OFF
$28,56
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$71,41
60% OFF
$28,56
2 meses de gracia en diferidos con Banco Guayaquil
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Product Summary: Our PH-20154 is a premium quality thermocouple replacement for Quadra-Fire and Heatilator Eco-Choice pellet stove models. This thermocouple measures 14″ in length . The Thermocouple is the device that monitors the fire after start-up. Once it reaches temperature the thermocouple allows the stove to start feeding on it's own in normal operation mode. If your stove goes out after the initial start-up cycle, more than likely the thermocouple needs to be replaced. *Note!!!: This does not fit the Mt. Vernon AE or CB1200, CB1200I. Fit For Models: ~ Original Mt. Vernon ~ Contour ~ Castile ~ Castile Fireplace Insert ~ Santa Fe B ~ Santa Fe ~ Santa Fe Fireplace Insert Fits Heatilator Eco-Choice Models: ~ PS35 ~ PS50 ~ Cab50 This thermocouple will be a direct fit for Heatilator Eco-Choice CAB50, PS35, and PS50 models in addition to the Quadra-Fire Castile Freestanding, Castile Insert, Contour, Mt Vernon OE, Santa Fe, and Santa Fe Insert models. Heatilator Pellet CAB50 PS35 PS50 Quadra-Fire Pellet Castile Freestanding Castile Insert Contour Mt Vernon OE Santa Fe Santa Fe Insert
