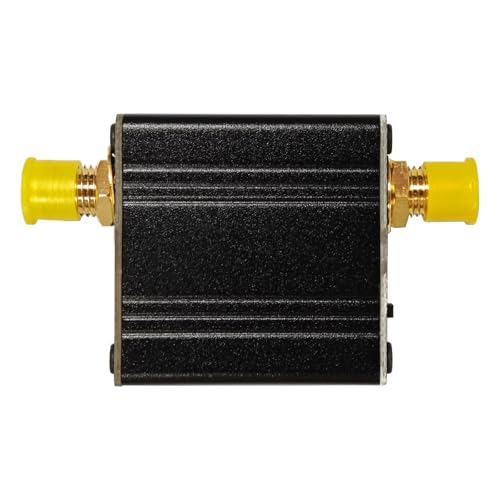

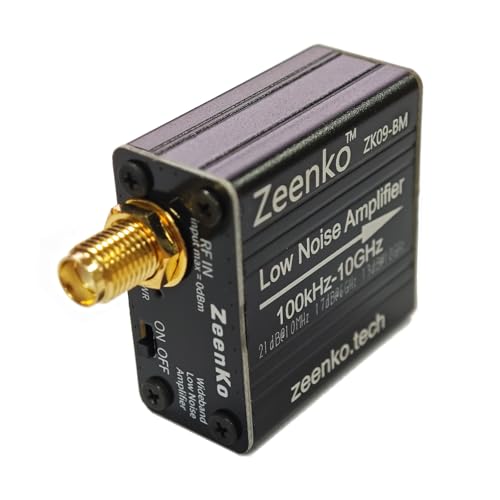

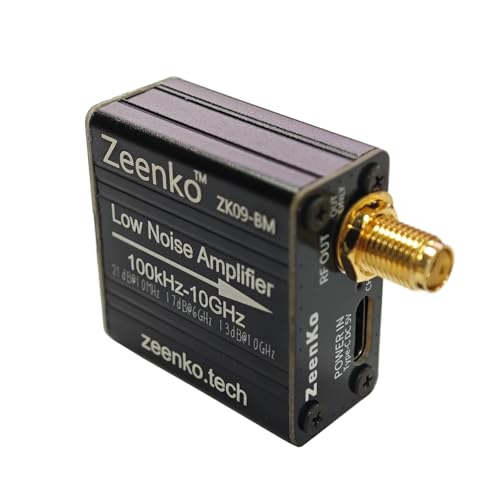

AURSINC ZK09-BM LNA Amplifier, Ultra-Broadband Low Noise, 100k-10GHz, 21db Gain@10MHz, USB Interface Powered, Built-in 300mAh Battery for TinySA Ultra, RF & Software Defined Radio (SDR)

0 5 4 9

9 calificaciones

Disponibilidad
Sin stock

Peso con empaque
0.20 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Sobre este producto

[High Performance] Ultra-broadband, Low noise. Good flatness in the 100k-10GHz range. Gain: 21dB@10MHz / 17db@6GHz / 13db@10GHz, OP1dB: 13dBm Typ. Can be used to replace ADM-8095, ADM-8625 modules

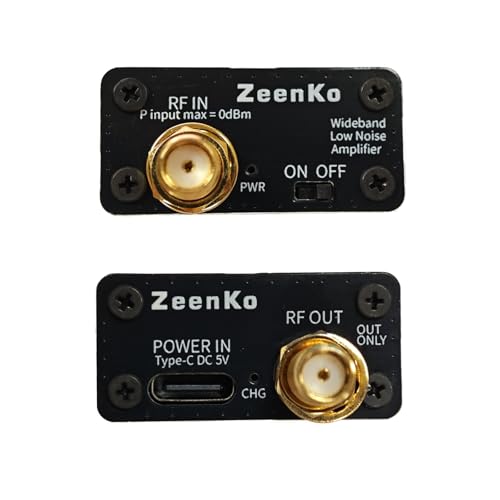

[USB Interface Powered] The ZK09-BM is a USB-powered RF low noise amplifier, adds a battery and reduces power consumption, making it suitable for portable use
[Built-in Battery] Built-in 300mAh battery, it has a flatter and more consistent gain, lower noise figure, smaller size, and longer battery life (Charging 210mA, Total 260mA, Battery life 5 hours)
[Application] Recommended for use as tinySA ULTRA 5.8GHz preamplifier(Unless specifically requested, please avoid using both the built-in LNA and external LNA of tinySA ULTRA at the same time). For RF & Software Defined Radio (SDR)
[Note] It is not recommended to employ a preamplifier in an environment with intense background noise. This might clog the receiver or cause the AGC circuit of the receiver to lower the reception gain, particularly in residential districts where medium and short waves are more prone to interference
[Package List] 1x ZK09-BM LNA Modules; 1x USB Cable
