Nanovna-H Vector Network Analyzer, HW3.6 10KHz -1.5GHz Upgraded HF VHF UHF Antenna Analyzer 2.8" Touch Screen Measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart

0 5 5 71

71 calificaciones

Size:

Nanovna-H

Disponibilidad
En stock

Peso con empaque
0.33 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

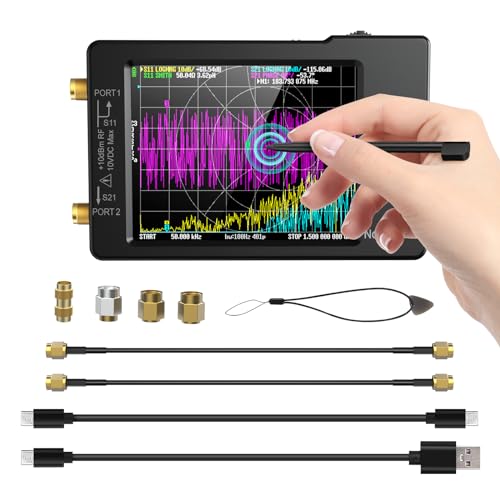

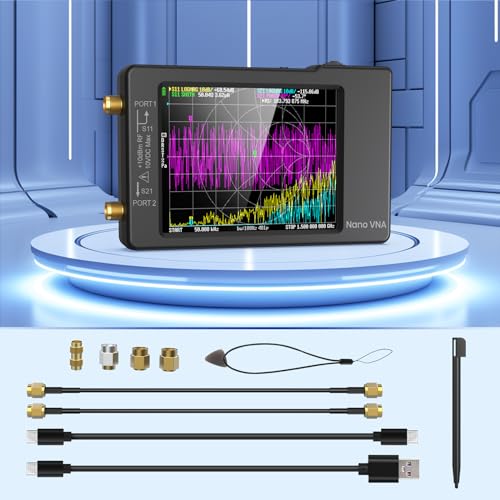

[Nanovna-H Vector Network Analyzer] Comes with 1X Antenna Analyzer Host (includes 2.8-inch touch screen), 2X 20cm SMA Male to Male RG174 RF Cable, 1X SMA Simple Calibration Kit SHORT, SMA Simple Calibration kit OPEN, 1X SMA Simple Calibration kit LOAD, 1X USB Type-C Data Cable, 1 X USB-C to USB-C Line, 1X Touch Paddlex
[Upgraded frequency algorithm] Nanovna-H Network Analyzer can take advantage of the odd harmonic extension of si5351 to support measurement frequencies up to 1.5GHz, providing dynamics better than 70dB in the 50K-300MHz frequency band and better than 60dB in the 300M-900MHz frequency band Dynamic, providing better than 40dB dynamics in the 900M-1.5GHz band, making it ideal for troubleshooting a variety of antennas.
[Built-in MICRO-SD port] This antenna analyzer comes with a MicroSD card port, You can use a MicroSD card to save measurement data in SNP format or to save screenshots in BMP format. MicroSD card uses SPI mode and only supports smaller than 32GB and formatted with FAT or FAT32.

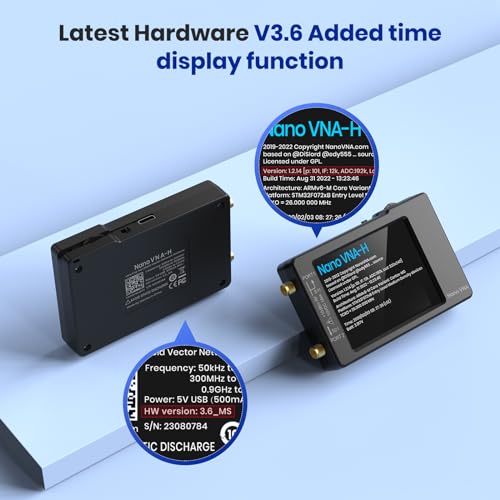

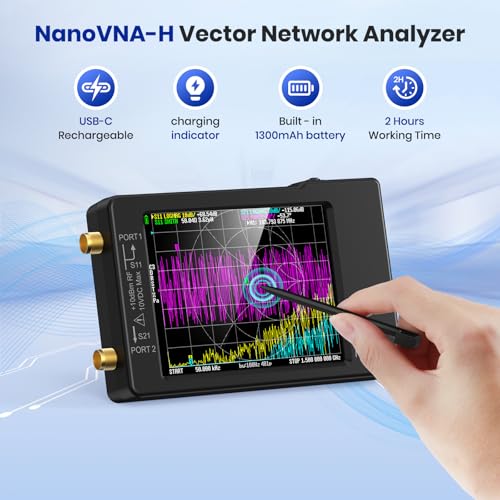

[Long battery life] This Nanovna-H is powered by batteries, charged via USB, with new battery circuit management, safer, built-in 1300mAh battery, can work continuously for 2 hours, the main interface of Nanovna-H can now display battery usage, vna Date and time, supports typec-typec cable, more convenient to connect to mobile phone
[Multiple functions] Vector Network Analyzer can measure S parameters, voltage standing wave ratio, phase, delay, Smith chart, etc., TX/RX method can measure complete S11 and S21 parameters (requires manual replacement of transceiver port wiring), supports time domain analysis function (TDR), more convenient to connect to mobile phones

$63,93

7% OFF

$59,76
