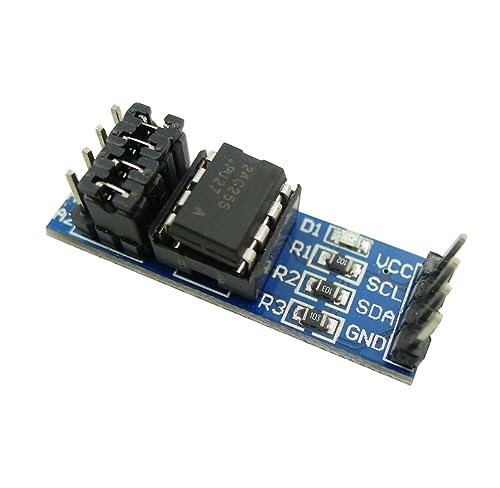

3PCS EEPROM Memory Module AT24C256 Chip I2C Serial Interface Data Storage Memory Module Onboard 8P Chip Holder with Onboard LED Indicator
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Onboard 8P chip carrier, supports AT24C256 series chips; pin power supply, on-board power display;
- Built-in pull-up resistor required for I2C communication;
- All pins lead out and are marked, the address input and the direct jumper settings for the write protect pin;
- PCB size: 36.5 x 12 x 12 mm (L x W x H)
- Data sheet: https://www.adrive.com/public/DHgTfQ/k000542-AT24CXX.rar
$12,68
31% OFF
$8,75
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$12,68
31% OFF
$8,75
Difiere a 3 y 6 meses sin intereses con Diners, Discover y Titanium
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles
Characteristic: 1, Onboard 8P chip holder, install AT24C256 chip. 2, pin power supply, on-board power display. 3, Onboard I2C communication requires pull-up resistor. 4, All pins are drawn and marked, enter the address and write protection pin can be directly jumper settings. 5, PCB board size: 36.5*12mm. 6, 32k x 8 storage units can be formed internally. 7, 2-wire serial interface. 8, Schmitt trigger, filter input to suppress noise. 9, two-way data transfer protocol. 10,Hardware write protection pin and software data protection function Has a 64-byte page write mode. The chip has 3 working voltages: 5.0V(VCC=4.5-5.5V) 2.7V(Cc=2.7V-5.5V) 1.8V(VC=1.8-3.6V) A0、A1: address selection input. In the serial bus structure, there are four AT24C256IC can beconnected. Use A0 and A1 to distinguish each IC. A1 is 0 when floating. SCL: Serial Clock lnput. The rising edge writes the data on SDA into the memory, and the falling edge reads the data from the memory and sends it to SDA. SDA: bidirectional serial data input and output port. For data exchange between memory and microcontroller. WP: Write Protect lnput. When this pin is connected to ground, write operations areallowed; when connected to VCC, all write memory operations are disabled. lf notconnected, the chip is internally pulled down to ground. VCC: Power GND: Ground NC: Empty Package included: 3 x AT24C256 I2C interface EEPROM memory module
