Artículo: AMZ-B0CNV9G4K1

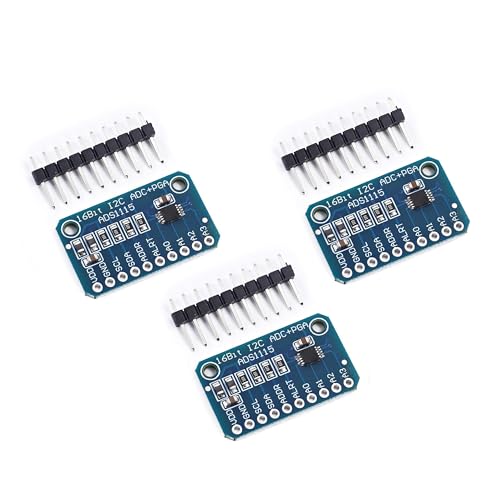

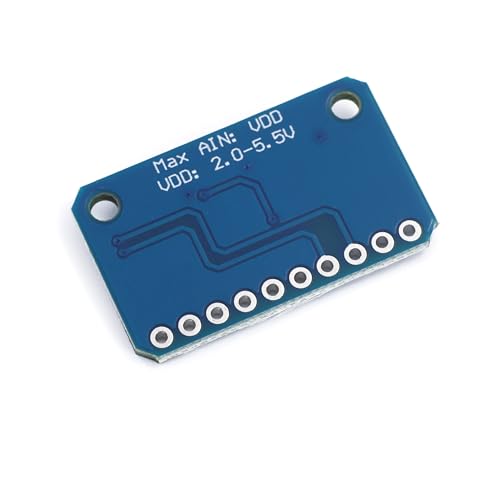

Teyleten Robot ADS1115 16 Bits 4 Channel Analog-to-Digital Converter Precised Develop Board Module Amplifier Board ADC I2C IIC for Arduino Raspberry Pi (Pack of 3pcs)
En stock
0.20 kg
Sí
Nuevo
Amazon
- WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless
- INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that
- Single-Shot Mode: Auto Shut Down; Programmable data rate: 8sps-860sps
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
ADC Bit rate: 16 Bit Interface Type: I2C Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs Input voltage: 2.0-5.5v Channel input voltage :0-VDD Continuous Mode: Only 150μA Single-Shot Mode: Auto Shut-Down PROGRAMMABLE DATA RATE:8sps-860sps Input range programmed control, 7 types input ranges: -0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B Size:18mm*28mm(about)
