CNC 500W Spindle Motor Kit, 500W 0.5KW Air Cooled Spindle Motor and Spindle Speed Power Converter and 52mm Clamp and 3pcs ER11 Collet 1/4" 1/8" 1/16" for CNC Engraving CNC milling CNC Drilling

0 5 4 5

5 calificaciones

Disponibilidad
En stock

Peso con empaque
2.68 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

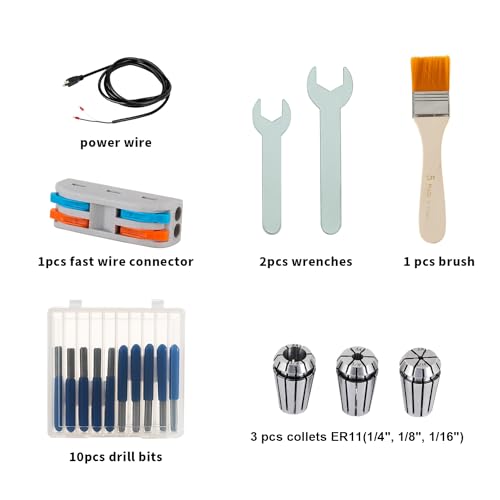

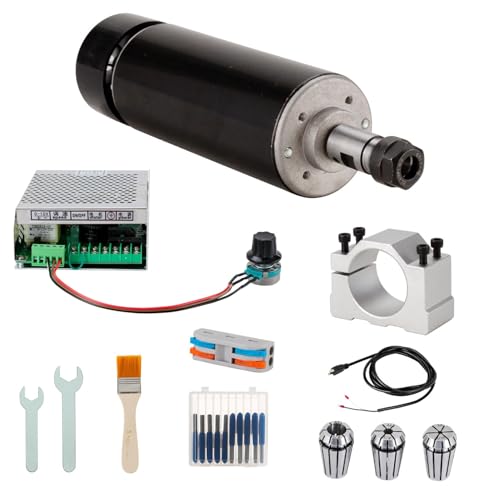

【Package include】- 1 x 500W Air-Cooled Spindle Motor, 1 x AC110V/220V Speed Governor with MACH3, 1 x 52mm Mount bracket, 3 x ER11 collect(1/4", 1/8", 1/16"), 10 x drill bits, 2 x wrenches, 1 x power wire,1 x brush, 1 x fast wire connector.

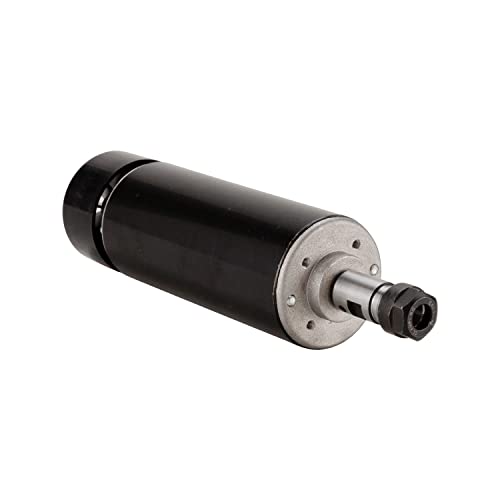

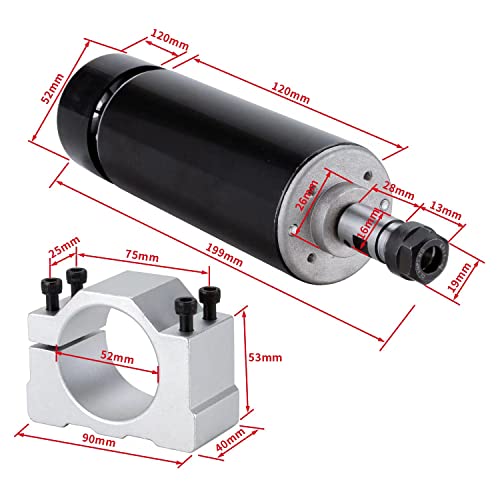

【Specification】- Operating voltage: 100VDC, Power: 500W, Input: AC110V/220V, Speed: Up to idle up to 12,000 rev / min, Torque: 5000G/CM. Insulation resistance:> 2 megohms, Dielectric strength: 400V. Motor Length: 200MM, High precision spindle run out 0.01-0.03.

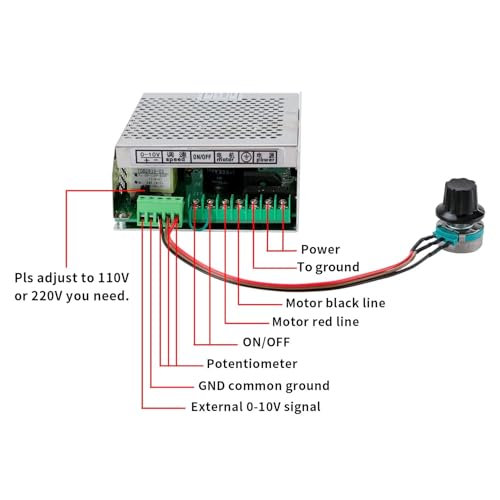

【Speed Power Switch】- Input voltage: AC110V/220V, 50/60Hz. Output current peak: 6A. Output voltage: DC0-100V. Please install in the place that is draughty, no dramatic impact, no vibration, no explosion hazard medium, no conductive metal particle.
【ER11 Collet Chuck】- 3pcs ER11 Collet Set Gripping Range: 1/4", 1/8", 1/16". Run-out tolerance 0.01mm. For CNC milling Lathe Tool & Work holding Engraving machine.
【WARRANTY ASSURANCE】-We have 20 years manufacturing experience , pls contact us for any question or problem. We are proficient in customizing products according to various requests and applications. If you have special inquiry, pls let us know.

$287,07

55% OFF

$130,49
