DC 8V 12V 24V 36V Motor Remote Control Switch for Control Linear Actuator, 433Mhz 10A Motor Forward Reverse Relay Switch（Momentary Mode）
Color Name:
2 remotes --Black
Disponibilidad
En stock
En stock
Peso con empaque
0.20 kg
0.20 kg
Devolución
Sí
Sí
Condición
Nuevo
Nuevo
Producto de
Amazon
Amazon
Sobre este producto
- Working voltage：DC8-36V；Quiescent condition：Less than 8mA；Working frequency：433mhz； Max load：10A （suggest motor load less than 5A）
- Main applications: This remote control switch can control electronic locks, motors (mainly used to control the forward and reverse rotation of DC motors), linear actuators, and so on
- Remote control distance：the remote control adopts RF technology, stable signal. Signal of the wireless remote switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 10--30 meters with no obstacle
- Working mode: We send Momentary mode（ that is, press and hold the transmitter button “ up ”,motor forward；Release the button,motor stop. press and hold the transmitter button “ down ” ,motor Reverse. Release the button, motor stop )
- Manual control：Limit and Wire External Button（If travel switch is needed, please use normally open type switch）
$21,43
5% OFF
$20,26
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
$21,43
5% OFF
$20,26
Envío gratis
Llega en 5 a 12 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja
de USA ![]()
a tus manos en
![]()
a tus manos en
Compra protegida
Disfruta de una experiencia de compra segura y confiable
![]()
Garantía de entrega
Con Tiendamia todas tus compras cuentan con Garantía de Entrega o devolución total de tu dinero.
Compras 100% seguras y garantizadas, para que pidas lo que sueñas y lo recibas del mundo a tu puerta.
Tarjetas de Débito y Crédito
Visa
Mastercard
American Express
Dinners
Discover
Alias
Pagos a través de PayPal
Compra procesada en dólares con dinero en cuenta o tarjetas internacionales.
PayPal
Conoce más detalles

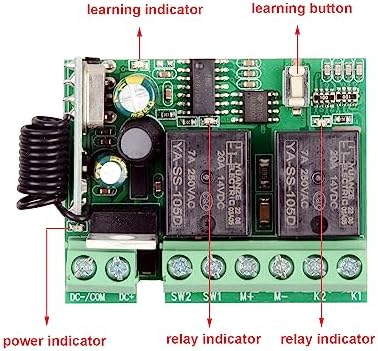

About Receiver: Model ： WJZH-M01 Working voltage：DC8-36V Quiescent condition：Less than 8mA Working temperature：-40 Degree +80 Degree Receiver sensitivity：more than -105dBm Working frequency：433mhz Function：Limit & Wire External Button Max load ：10A （suggest motor load less than 5A） Size：68 x 44 x 25mm Working Model：Working way changed by learning button on the Receiver Momentary ： press and hold the transmitter button up,motor forward.Release the button,motor stop. press and hold the transmitter button down ,motor Reverse.Release the button,motor stop. Learning and clearing Learning method： Momentary: Press learning button once, the indicator flash once and ON , Then press the transmitter button up ,the learning indicator flash 3 times and ON,Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Momentary model learning Successfully Clearning method: Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared. Features Manual control (default momentary) Momentary: The MD soldered dot on the receiver don't need to be connected. Press and hold the external K1 button motor will forward. and the motor stops after Release the button. Press and hold the external K2 button, the motor reverses, and the motor stops after Release the button. Package Includes 2 x Transmitters 1 x Receiver
