1610 Linear Motion CNC Ball Screw with Anti Backlash Nut, Coavoo SFU1610 760mm / 29.92 inch 16mm Ballscrew with Standard End Machine for BK12 BF12

Size:

L: 760mm / 29.92 inch

Style:

SFU1610 NUW

SFU1204 NUW

SFU1604 NUW

SFU1610 NUW

SFU2010 NUW

Disponibilidad
En stock
Peso con empaque
1.44 kg
Devolución
No
Condición
Nuevo
Producto de
Amazon

Sobre este producto

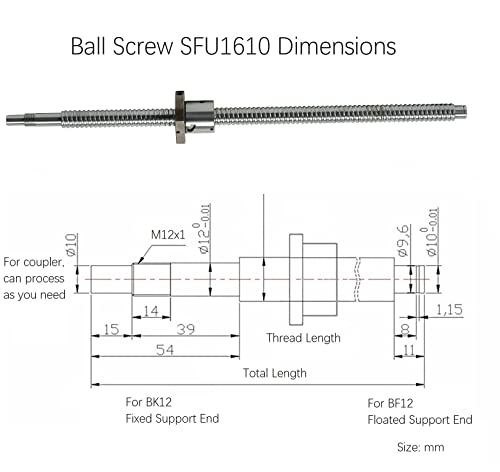

  • The package includes: C7 Grade SFU1610 ball screw 760mm / 29.92 inch + ballscrew nut, the end machining is standard as the pic 2 in default. We can provide custom end machining, if need, please message us

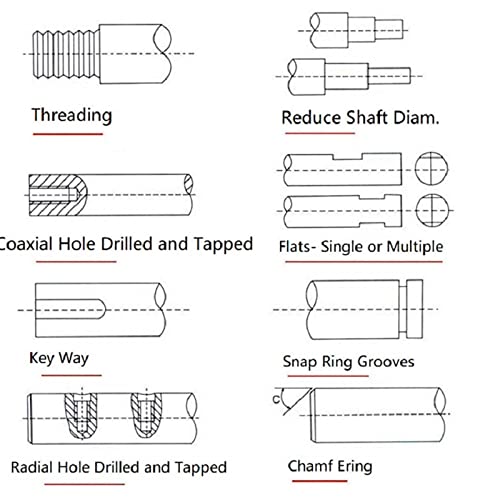

  • The RM1610 ballscrews diameter: 16mm; Pitch: 5mm, Lead: 10mm; total length about 760mm, thread length about 695mm, travel length about 643mm. We can customize the end machining as your requirements

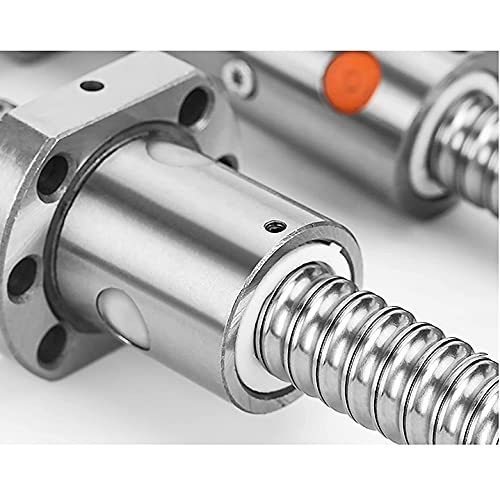

  • The ball screw nut is with good anti-backlash performance, make it with higher accuracy and longer service time
  • The ballscrew is no stick-slip effect, heats up less, reduce driving power required, small starting torque, able to apply high speed and micro-feeding
  • We have full styles of ball screw 16mm, SFU1610, DFU1610, and the C5 ground accuracy high precision, with all the accessories; We provide the drawing, CAD and 3D step files to support you to design your CNC kit, you could message us. Together with Coavoo, let us enjoy a better transmission experience
$290,97
31% OFF
$200,67

IMPORT EASILY

By purchasing this product you can deduct VAT with your RUT number

$290,97
31% OFF
$200,67

Compra más de $100 y te regalamos la mitad de la tasa arancelaria

$20 OFF al pagar con Deuna

Envío gratis
Llega en 16 a 26 días hábiles
Con envío
Tienes garantia de entrega
Este producto viaja de USA a tus manos en
Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable

Conoce más detalles

Brand: CoavooPrecision: C7 Grade, we can also provide C5 ground accuracy, pls contact usModel: SFU1610The package includes:1pcs 16mm Ball Screw SFU1610 RM1610 Length 760mm/29.92inch with standard end machining for BK12 BF12 bearing support1pcs Ball Screw NutCustomization and Technical Support:1. We can provide any length ( From 100mm to 2600mm).2. We can provide end machining as your requirements.3. The default is right-hand ball screw, we can also provide left-hand ballscrews4. We can provide complete information of the product.(Contains CAD and 3D step modeling files. 5. All products are provided pre-sale and after-sale technical support.6. We are a seller focusing on the transmission field, any custom needs, please message us
