Artículo: AMZ-B0BFZLJPB5

Xicoolee

Thermal Camera MLX90640-D110 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,110 Degree Field of View

Disponibilidad
En stock

Peso con empaque
0.20 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Sobre este producto

Small size, low power consumption, 32*24 pixel infrared array,110°field of view
I2C interface communication, the highest speed can reach 1MHz
Compatible with 3.3V/5V working level
Noise Equivalent Temperature Difference (NETD) is 0.1K RMS @ 1Hz refresh rate
Available for open development resources and tutorials which are intended for Raspberry Pi Development Board

$193,12

55% OFF

$87,78

$193,12

55% OFF

$87,78

Envío gratis

Llega en 16 a 26 días hábiles

Tienes garantia de entrega

Cantidad

Este producto viaja de USA

a tus manos en

Medios de pago Tarjetas de Débito, Crédito y Deuna

Compra protegida

Disfruta de una experiencia de compra segura y confiable

¿Qué es Tiendamia?

Fácil, rápido y seguro

Información de Aduanas

para tu compra

Garantía de entrega

100% garantizada

Devoluciones

dentro de los primeros 7 días de recibido

Pago 100% seguro

con todas las tarjetas

Sé un Ciudadano de Tiendamia

para beneficios extra

Únete ahora

Ayuda y atención

Consulta el centro de ayuda en línea

Contáctanos

Conoce más detalles

Overview: Thermal Camera MLX90640-D110 is a far-infrared thermal sensor array designed with MLX90640. With a resolution of 32*24, it provides great performance for applications that do not require high-resolution images or high frame rate, and provides a cost-effective alternative to more expensive high-end infrared thermal camera. Typical applications for the MLX90640 include fire protection systems, intelligent buildings, Intelligent lighting, IP/surveillance cameras, HVAC equipment and vehicle seat occupancy detection. This product provides demo codes intended for Raspberry Pi platform. The demo codes is divided into C and python versions, both of which include thermal image display function. Specifications: Dimensions:20mm(length)*18mm(width) Resolution:32*24 Refresh Rate:0.5Hz~64Hz Field Of View(FOV):110°×75° Communication Interface:I2C Supply Voltage:3.3V/5V Working Current: Operating Temperature:-45~85℃ Temperature Measuring Range:-40℃～300℃ Absolute Accuracy:±2℃ Package contents: 1.Thermal Camera MLX90640-D110×1 2.PH2.0 4PIN wire×1

Thermal Camera MLX90640-D110 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,110 Degree Field of View

Compra protegida

Conoce más detalles

XICOOLEE Thermal Camera MLX90640-D55 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,55 Degree Field of View

XICOOLEE Thermal Camera MLX90640-D110 IR Array Thermal Imaging Camera,I2C Interface 32 * 24 Pixel Infrared Array,110 Degree Field of View

XICOOLEE CAN HAT SN65HVD230 can-Bus transceiver Module Stably Long-Distance Communication Functions Communication Module Single Channel

F2VW Thermal Camera 256x192 IR Resolution with 2MP Visual Camera, 640x480 3.2" Screen Thermal Imaging Camera,Super Resolution Image,Dual-Camera Thermal Imager,16 GB Storage,Carrying Case

XICOOLEE DC5V Cooling Fan for Jetson Nano, 40mm, PWM Adjustable Speed, 7500 RPM, 0.20m/min Airflow, 4-Pin Connector, Compatible with Single-Board Computer & Embedded System

XICOOLEE DC5V Cooling Fan for Jetson Nano Developer Kit 4Pin PWM Adjustable Speed Strong Cooling Air Fan with Reverse-Proof Connector 40mmx40mmx10mm

HP96 Thermal Imaging Camera,3.5" Touch Screen Thermal Camera with Visual Camera, Intelligent Scene Detection, 240 x 240 Super Resolution, 96 x 96 IR Resolution, 25 Hz Video Recording, -4°F to 662°F

Infrared Thermometer Laser Temperature Gun -58℉ to 1112℉,with Cal Calibration and Adjustable Emissivity,Min& Max Measure,for Cooking,Oven,Meat Food,HVAC,Appliance（Yellow）

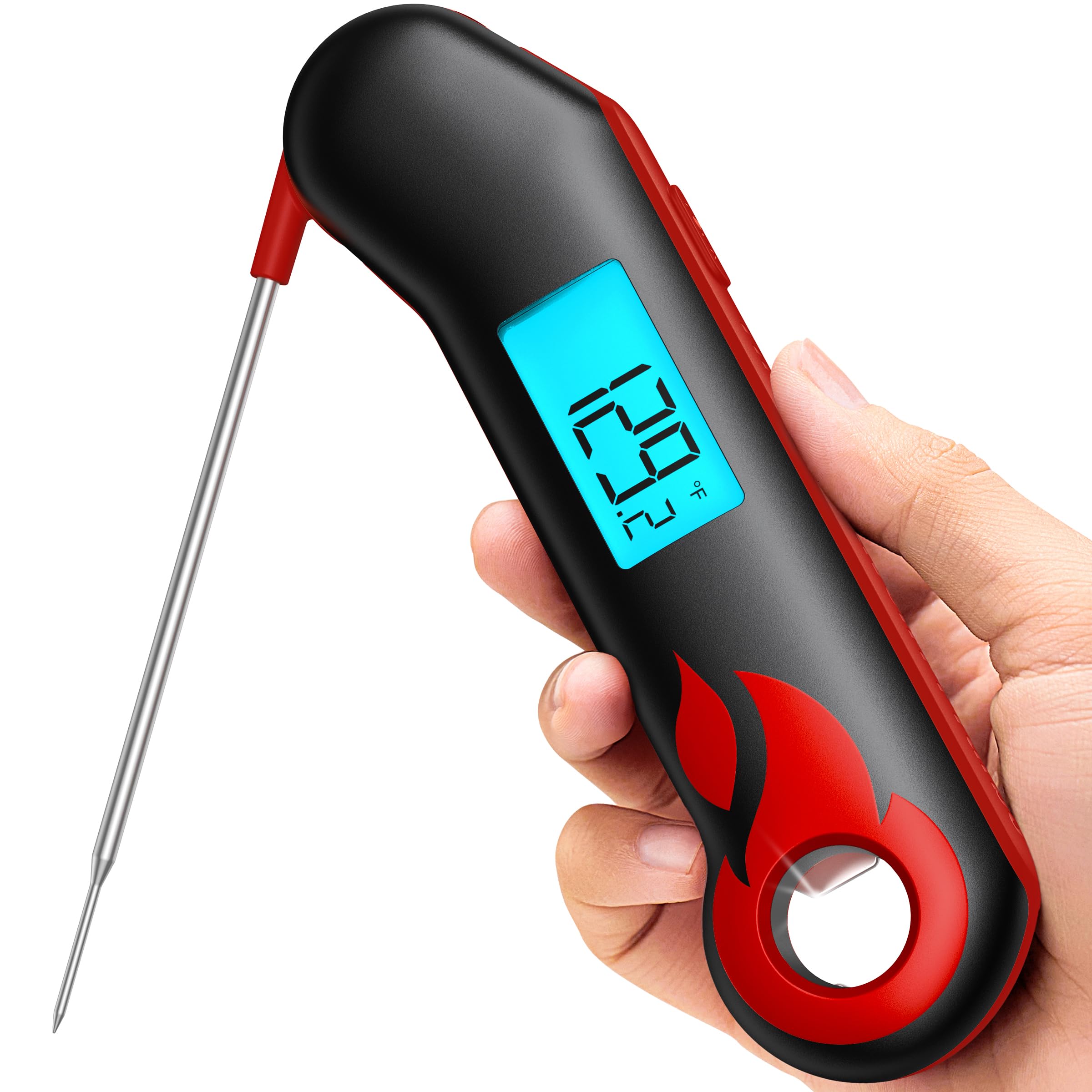

ThermoMaven Professional Meat Thermometer, Instant Read in 0.5 Sec, NIST Certified Accuracy ±0.5°F, IP67 Waterproof, Ambidextrous Backlight & Auto-Rotating Display, for BBQ/Grill/Cooking, Black&Red

Laminating Sheets, 100 Pack Clear Thermal Laminating Plastic Paper Laminator Sheets, 11 x 17-Inch, 5mil, Ideal Office or School Supplies

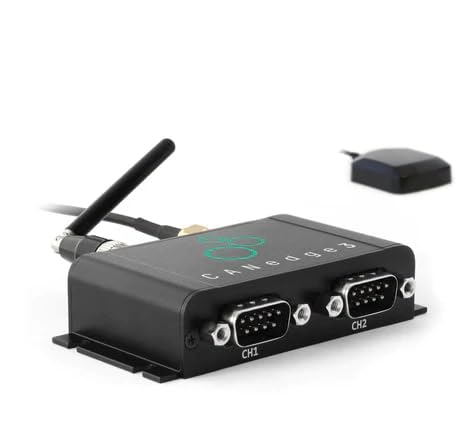

CANedge3 - CAN/LIN Data Logger, Cellular, GNSS/IMU: 8 GB SD Card | Manufactured by CSS Electronics
