CNC Spindle CNC Motor 110V 1.5KW Air Cooled Spindle Motor 65mm 4 Bearings 24000RPM 400HZ for CNC Router Machine

0 5 4 26

26 calificaciones

Style:

1.5KW 65mm

Disponibilidad
En stock

Peso con empaque
3.40 kg

Devolución
Sí

Condición
Nuevo

Producto de
Amazon

Sobre este producto

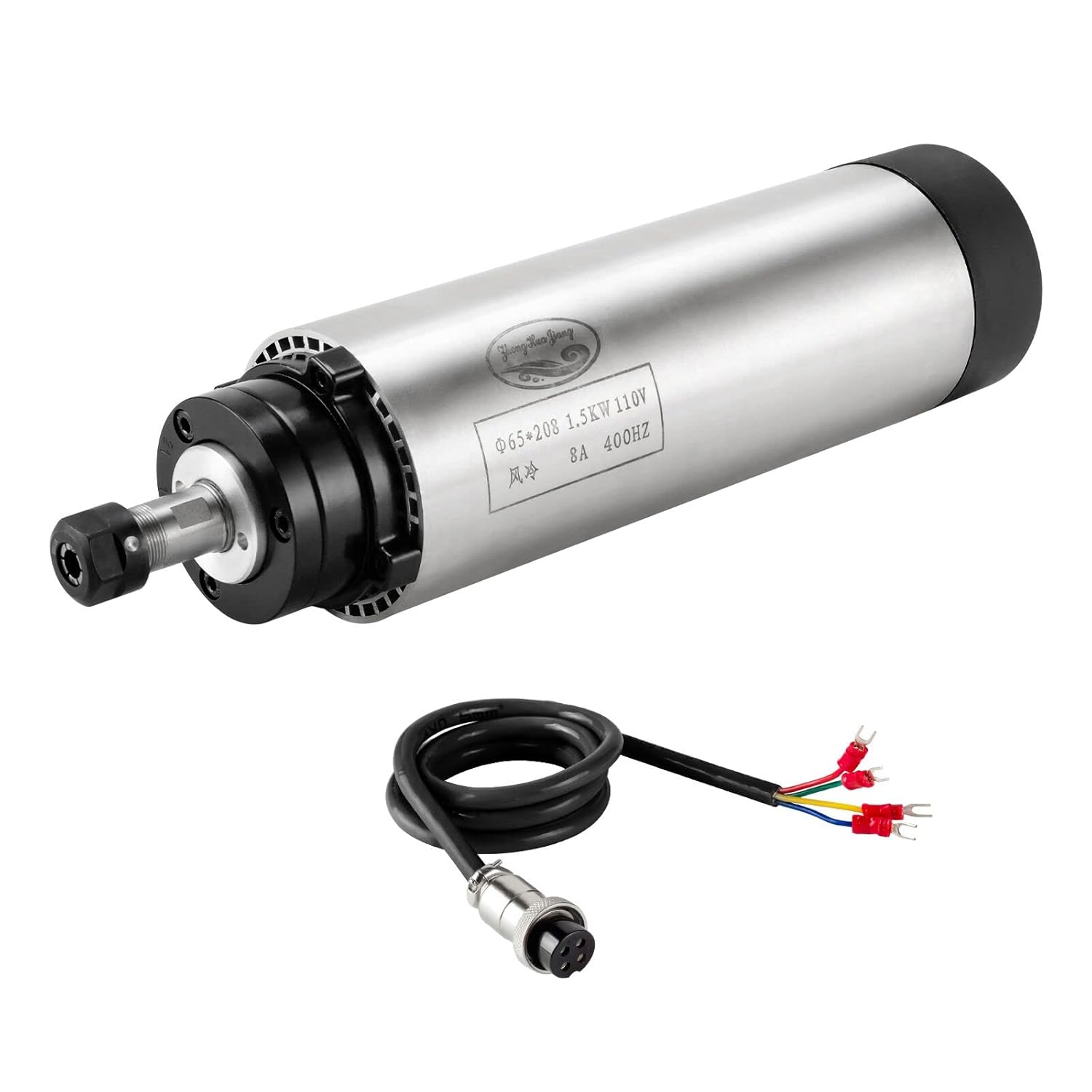

【BASIC INFORMATION】-This spindle motor should work with VFD 110V,400HZ. 2 Poles, Collet ER11-6mm(compatible with bits between 1mm and 7mm ),Diameter： Φ65mm，Voltage: 110V ,Power:1.5KW, Frequency: 400 Hz, Current: 8A , Speed: 5000-24000 RPM, Runout off: less than 0.005 mm. Weight: 2.7kg(5.96lbs)
【SPINDLE ADVANTAGE 】-It made less noise when working, Authentic 4pcs upgraded steel bearings significantly extend working life 3 times longer than ordinary spindle motor; Advanced dynamic balance technology effectively reduce the noise and increase stability in the working process; Runout off less than 0.005mm that 10 times precision beyond average spindle motor.
【EASY AND FAST TO ASSEMBLE 】-We offer pre-soldered aviation wire , You will take 2 minutes to connect spindle motor with VFD.
【WIDE APPLICATION】-Kinds of engraving and drilling material :Kinds of drilling and engraving materials , such as plastics, soft aluminum,brass, acrylics, PVC, PCB, wood,plywood, nylon.
【WARRANTY ASSURANCE】-We have 20 years manufacturing experience , pls contact us for any question or problem. We are proficient in customizing products according to various requests and applications. If you have special inquiry, pls let us know.

$424,29

49% OFF

$217,59
