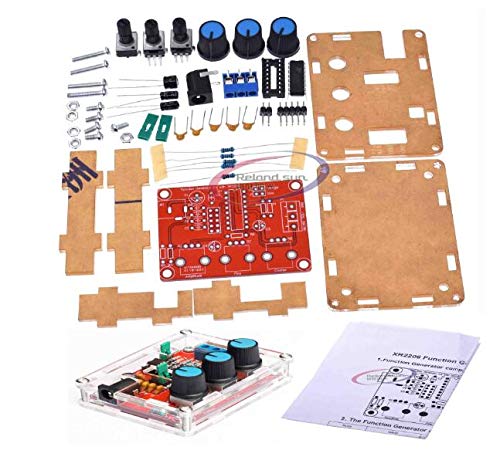

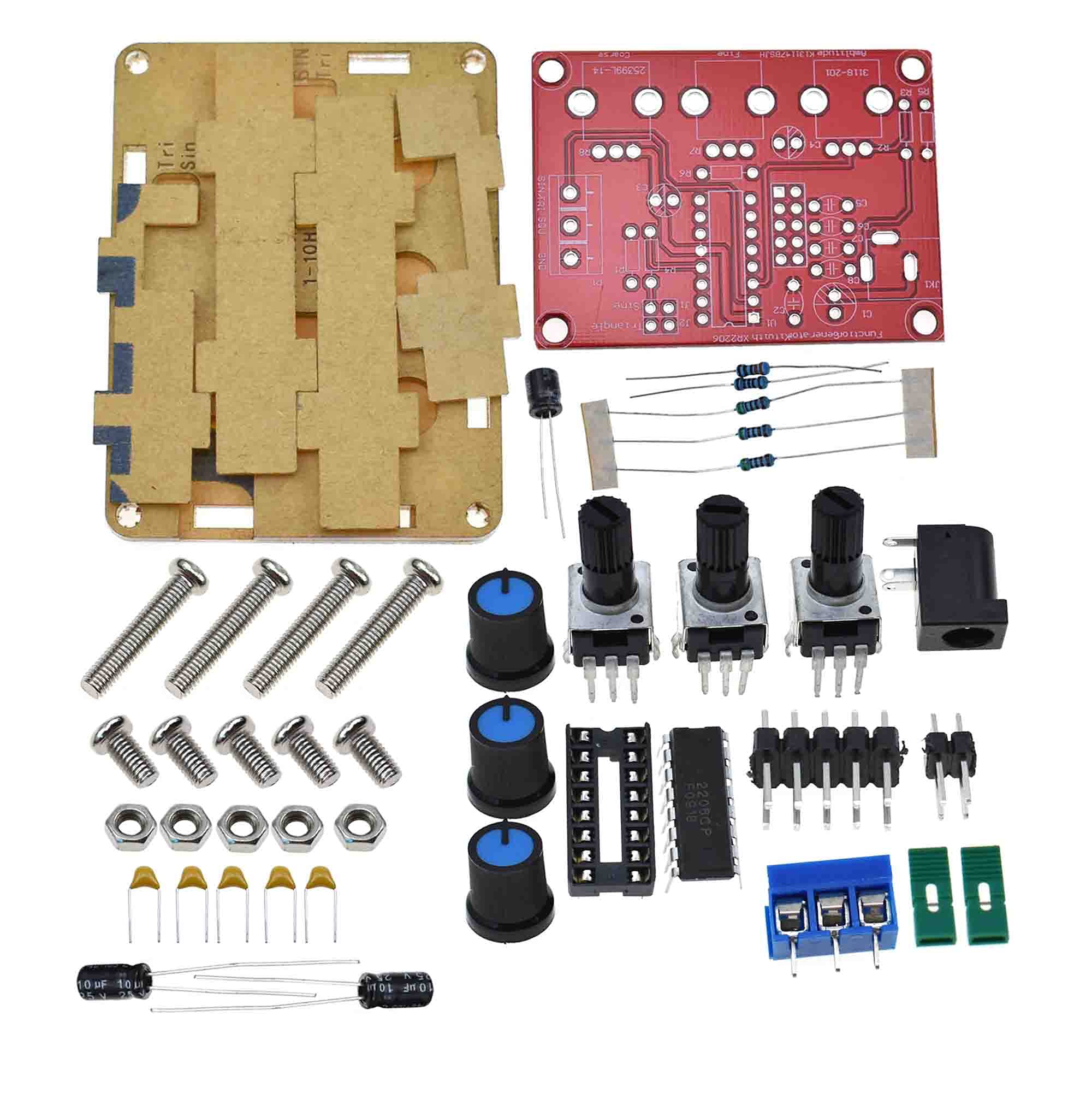

XR2206 High Precision Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz-1MHz Adjustable Frequency Amplitude (DIY)
En stock
1.19 kg
No
Nuevo
Amazon
- High resolution, can generate sine/triangle/square waveforms.
- Frequency range: 1Hz-1MHz.
- Frequency adjustment features coarse tuning and fine tuning.
- Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Features: High resolution, can generate sine/triangle/square waveforms. Frequency range: 1Hz-1MHz. Adjustable frequency and amplitude. Frequency adjustment features coarse tuning and fine tuning. Wide power supply range, use 9-12V external power or 9V battery(NOT Included). All are through hole components, easy for installation. Specifications: Voltage Supply: 9-12V DC Input Waveforms: Square, Sine & Triangle Impedance: 600 Ohm + 10% Frequency: 1Hz-1MHz SINE WAVE Amplitude: 0-3V at 9V DC Input Distortion: Less than 1% (at 1KHz) Flatness: +0.05dB 1Hz - 100kHz SQUARE WAVE Amplitude: 8V (no load) at 9V DC Input Rise Time: Less than 50ns (at 1KHz) Fall Time: Less than 30ns (at 1KHz) Symmetry: Less than 5% (at 1KHz) TRIANGLE WAVE Amplitude: 0-3V at 9V DC Input Linearity: Less than 1% (up to 100KHz) 10mA
