Artículo: AMZ-B09F3KKJHH
LCUS - Type 1 USB Relay Module USB Switch USB Intelligent Control Switch 5V, 10A / 250VAC, 10A / 30VDC with 2M USB Extension Cable
En stock
0.20 kg
Sí
Nuevo
Amazon
- Protection function: Module with overcurrent protection and relay diode current protection function.
- Chip: High performance micro-controller chip on board.USB CH340 control chip on board.
- Features: Onboard 5V, 10A / 250VAC, 10A / 30VDC relay, relay life long continuous pull 100,000 times.

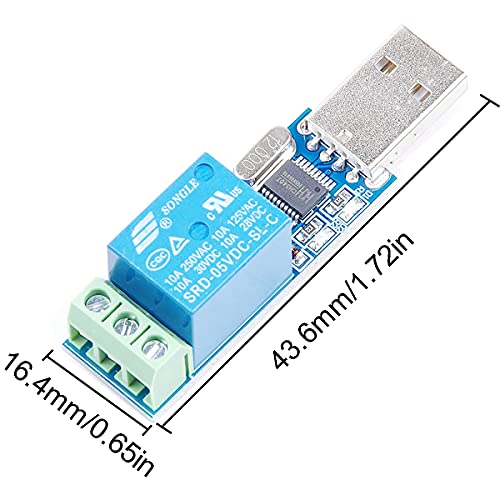

- PCB Size: 47.6 (mm) x16.4 (mm).The LED power lights and relay status turn on.
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles
Product description USB switch the default communication baud rate: 9600 BPS USB switch communication protocol Data (1) - startup logo (the default is 0 xA0) Data (2) - switch address code (the default is 0 x01, identifies the first switch) Data (3) - operation data (0 x00 to "off", 0 x01 to "on") Data (4) - check code For example: Open the USB switch:A0 01 01 A2 Package Included: 1 x LCUS - Type 1 USB Relay Module 1 x 2M USB extension cable
