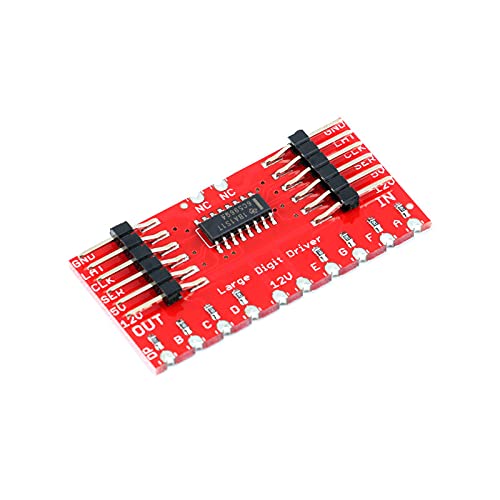

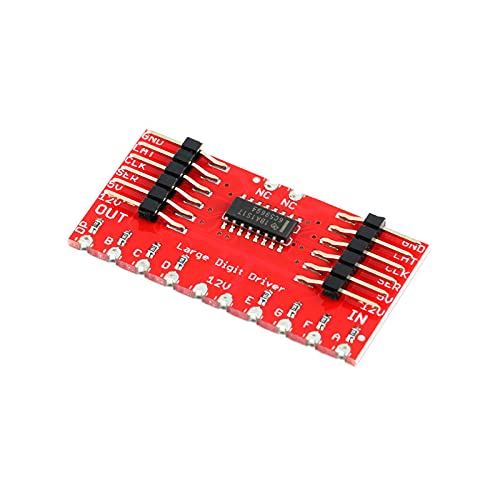

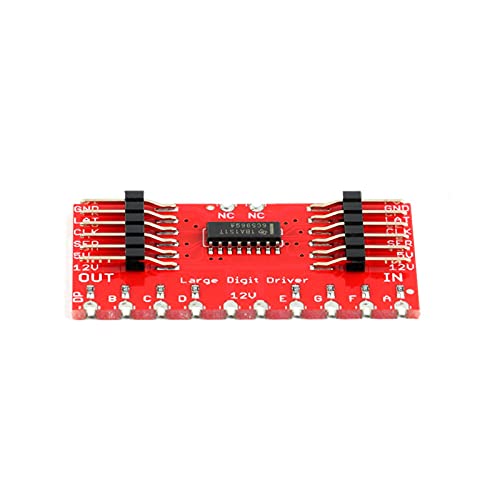

DC 5V TPIC6C596 Large Digit Driver Drive 6.5" 7-Segment LED Display Module for Andrino DIY Kit Electronic PCB Board Module
En stock
0.87 kg
Sí
Nuevo
Amazon
- DC 5V TPIC6C596 Large Digit Driver Drive 6.5" 7-Segment LED Display Module for Andrino Diy Kit Electronic PCB Board Module
IMPORT EASILY
By purchasing this product you can deduct VAT with your RUT number
Conoce más detalles

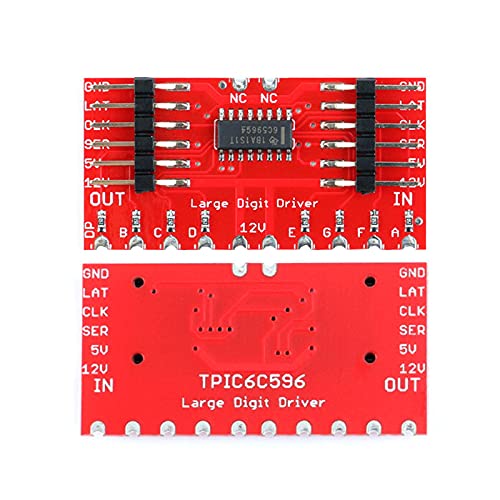

Product Features: The TPIC6C596 is an 8-bit D-type shift register with serial input parallel output, parallel output with buffer control, and clear control. Multiple modules can be cascaded. Can be used to drive digital tube, saving microcontroller IO port. The 8-bit parallel output port is connected to the current limiting resistor and can be no longer connected externally. Product Parameters: Working temperature: -40 ~ 125 ° C Power supply: 4.5 ~ 5.5V Serial clock frequency: up to 10MHz Open drain MOS driver tube VDS(ON)=0.5V, maximum IDS=90mA Instructions for Use:SER: SER_IN serial data input on the IN side of the board SER: SER_OUT serial data output on the OUT side of the board 5V: chip VCC power supply 5V 12V: The anode power supply end of the digital tube or other LED display device is connected to the pin or pad and then connected to a power supply. This pin does not output 12V, just a connection point. The external power supply can be other voltage values, according to the specific LED. Display device power supply requires power; this pin or pad can also be disconnected CLK: SRCK serial shift register clock input LAT: RCK parallel register clock input A, B, C, D, E, F, G, DP: parallel data output, open drain output
