NanoVNA-F V2 Vector Netwerk Analyzer 3Ghz,4.3 inch TFT Screen NanoVNA Antenna Analyzer Metal Shell with 5000mAh,NanoVNA V2 HF VHF UHF VNA Measuring S-Parameter Voltage SWR Phase Delay Smith Chart

0 5 4 18

18 calificaciones

Color:

NanoVNA-F V2

Size:

NANOVNA-F V2

Disponibilidad
En stock

Peso con empaque
0.52 kg

Devolución
No

Condición
Nuevo

Producto de
Amazon

Sobre este producto

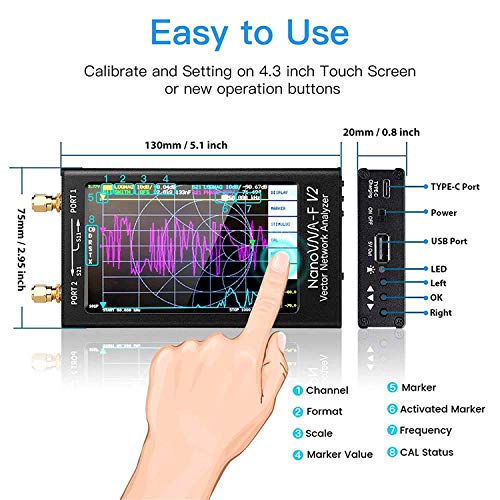

【4.3inch Large Screen】Our NanoVNA-F V2 with 4.3-inch IPS TFT LCD screen with 800 * 480 resolution, can measure S-parameter, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on. The NanoVNA V2 3ghz is equipped with touch screen paddle for easy use.

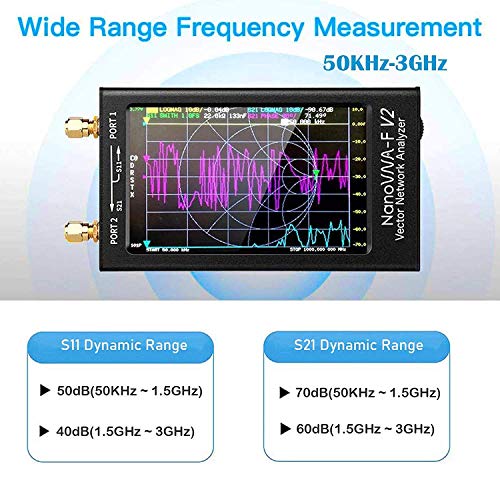

【Improved Frequency Range】The 3g NanoVNA-F has a measurement range of 50k-3ghz, which is larger than the old version. The TX/RX method can measure the complete S11 and S21 parameters，S21 dynamic ranges: 70dB (1.5GHz), 60dB (3GHz); S11 dynamic ranges: 50dB (1.5GHz), 40dB (3GHz).
【5000mAh Battery and Longer Standby Time】The antenna analyzer's 5000mAh large-capacity battery has longer standby time, up to 7 hours. When not used as a measuring instrument, it can be used as a power pack to charge your mobile phone.
【Aluminum Alloy Case Design】The vector network analyzer uses metal shield design to reduce the external interference and improve the measurement accuracy. The strong aluminum alloy makes it more durable.
【Package Includes】NanoVNA-F V2 Host x1 ; 200mm SMA-JJ RG405 RF Cable x2; SMA calibration kit-Open/Short/50Ω Load x1; SMA-KK Double-Head Female Hole Adapter x1; SMA-JJ Double-Head Male Pin Adapter x1; SMA-JKW Elbow Outer Screw Inner Hole To Inner Screw Inner Needles Adapter x1; USB Type-C Cable x1; Touch Pad x1.

$371,76

55% OFF

$168,98
